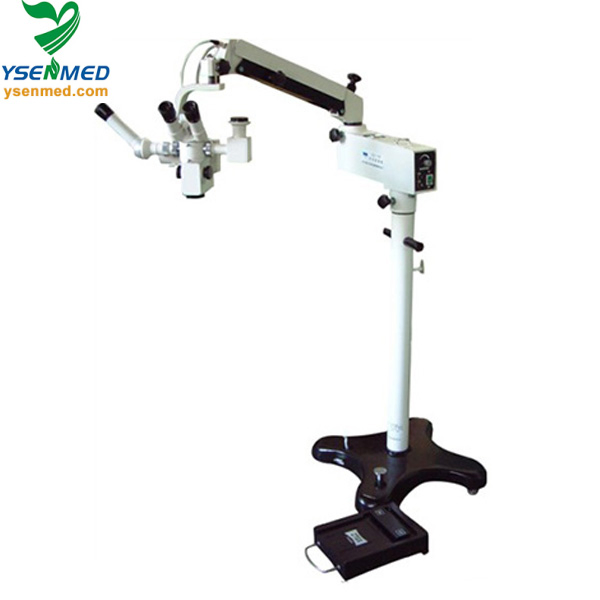

Medical Instrument Yslzj4d Ophthalmic Surgical Instruments

1 / 5

Medical Instrument Yslzj4d Ophthalmic Surgical Instruments

Customization:	Available
Type:	Laryngoscope
Application:	Ent

Send Inquiry

Product Description

Basic Specifications

Model NO.

YSLZJ4D

Material

Steel

Feature

Reusable

Certification

CE, ISO13485

Warranty Period

12 Months

Product Name

Ophthalmic Surgical Microscope

Model

Mobile Type

Application

Hospital

Origin

China

Capacity

100set/Month

Product Description

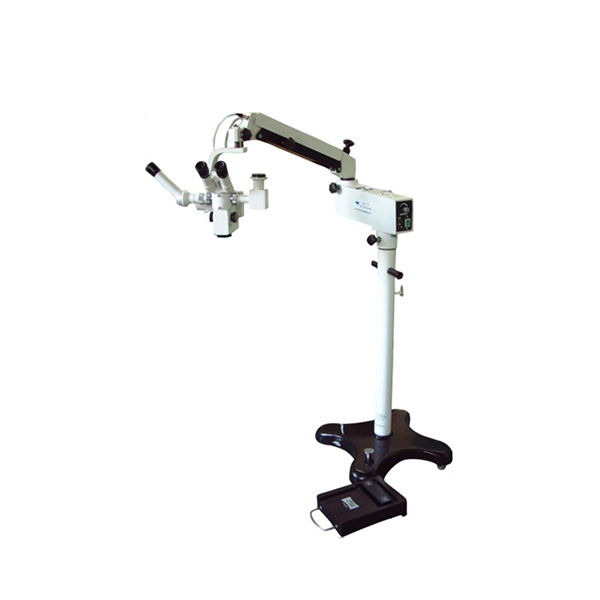

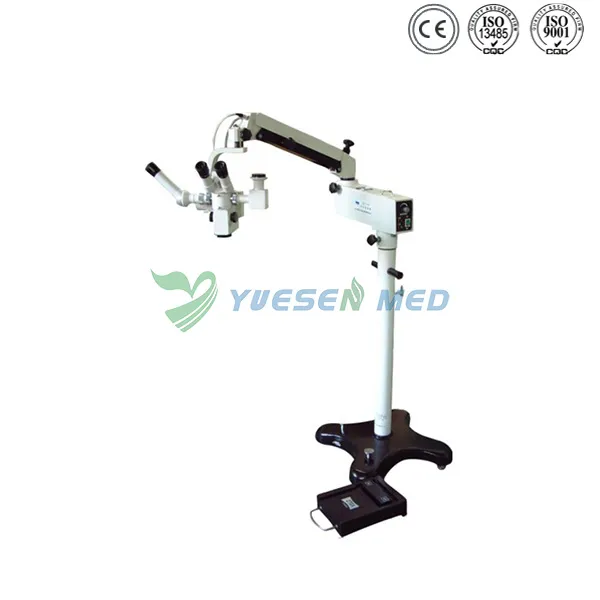

Medical YSLZJ4D Ophthalmic Surgical Instruments

Model: YSLZJ4D

💡 Application

This is a light multi-function operation microscope developed which can be used in operations such as brain surgery, ENT, ophthalmology etc. The optical routeway of the microscope adopts the parallel optical routeway and it has the features of big field depth, wide vision field and uniform illumination.

Single ocular teaching scope, camera interface and CCD interface are available for choice. The instrument is also ideal for animal dissection and microsurgery teaching.

📋 Technical Specification

Binocular tube focus: 160mm
Eyepiece: 12.5x, wide-angle, adjustable visual degree and caging device
Big objective lens: F: 200, 250, 300, 400mm (Optional: apochromatic objective lens)
Motorized focusing by foot control, fine focusing range: 40mm
Diameter of visual field: 80mm ~ 12.5mm
Range of ocular distance: 50 ~ 75mm
Main microscope has six movements of degrees of freedom with easy manual adjustment
Five steps magnification: 4x, 6x, 10x, 16x, 24x (Ratio 1:6)
Cold light source: 12V, 100W, Maximum brightness: 80000Lux
Pneumatic spring balance stand, Arm stretch radius: 1200mm
Voltage: 220V±10%, 50Hz or 110V±10%, 60Hz

🛠 Optional Accessories

Splitter, monocular Teach mirror, digital camera interface, 1/3 inch CCD camera interface, optional xenon lamp lighting, 0° eyepiece.

Binocular Assistant Synchronization

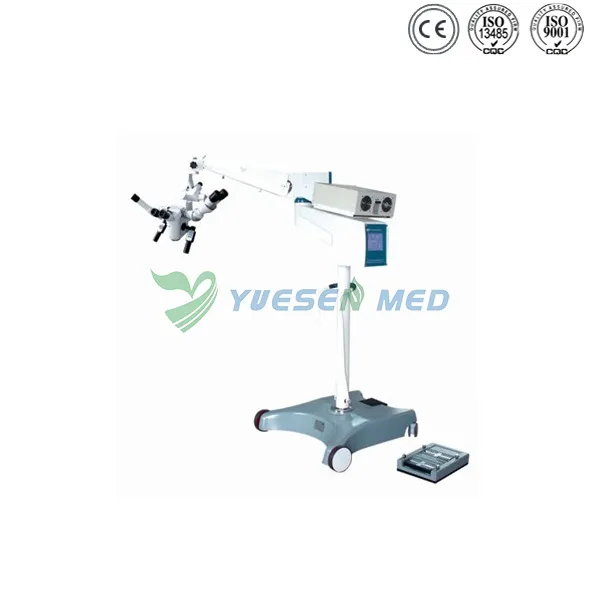

ENT Operation Microscope (Model: YSLZL21)

💡 Key Features

Dual Scope Design: Designed with dual scopes for binocular sharing, suitable for 2-3 persons.
Adjustable Binocular Tube: Main microscope features a continuous tilting range of 30-60° for ergonomic comfort.
Optical Synchronization: Assistant's microscope synchronizes with the main microscope (same light route and magnification).
Motorized System: Features a motorized zoom (1:5 ratio) and motorized focusing system.
Illumination: Coaxial internal illumination system (80,000 ~ 180,000 Lx).

📋 Technical Specification

Vertical up-down range: 500mm
Motorized zooming speed: 2r/min
Precise focusing range: 40mm (speed: 2mm/s)
Interpupillary distance: 55-72mm adjustable
Cold light source: 15V 150W
Stand horizontal arm stretch: 1200mm

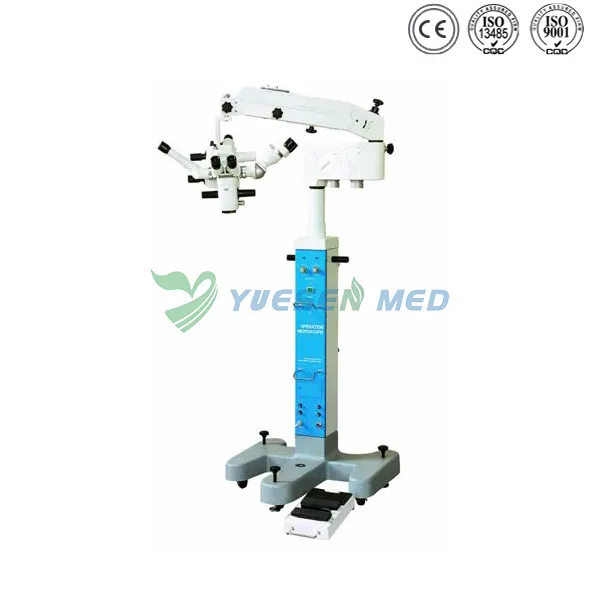

Orthopedics ENT Surgical Microscope

Model: YSLZL11

Product Gallery

Frequently Asked Questions

What surgical procedures can the YSLZJ4D be used for?

The YSLZJ4D is a multi-function operation microscope suitable for brain surgery, ENT (Ear, Nose, and Throat), and ophthalmic (eye) surgeries. It is also ideal for animal dissection and microsurgery teaching.

What are the magnification options for these microscopes?

The YSLZJ4D model offers a five-step magnification change with ratios including 4x, 6x, 10x, 16x, and 24x. The YSLZL21 model features a motorized continuous zoom system with a ratio of 1:5.

How does the assistant viewing system work on model YSLZL21?

The YSLZL21 includes a binocular assistant's microscope that synchronizes perfectly with the main microscope. It shares the same light route, magnification field, and stereo-scopic perception, allowing two or three people to observe simultaneously.

What kind of illumination system is integrated?

The instruments utilize high-brightness cold light sources. For example, the YSLZJ4D uses a 12V 100W source (80,000 Lux), while the YSLZL21 uses a 15V 150W coaxial internal illumination system reaching up to 180,000 Lux.

Are these microscopes adjustable for ergonomic comfort?

Yes, they feature pneumatic spring balance stands with six degrees of freedom. The main microscopes often include tilting binocular tubes (e.g., 30-60° range) to help surgeons maintain comfortable body positions during deep cavity operations.

What quality certifications do these surgical instruments hold?

These ophthalmic surgical instruments are certified with CE and ISO13485 standards, ensuring they meet international requirements for medical device quality and safety.
