L101 Microscopetrinocular Microscope Flu Virus with Competitive Price for Microscopes with Screen

Basic Product Information

Model NO.

BK6000-FL4LEDT

Magnification

>1000X

Type

Fluorescent

Number of Cylinder

≥Three

Mobility

Desktop

Light Source Kind

Ordinary Light

Usage

Teaching, Research

Principle of Optics

Infinity Optical System

Nosepiece

Quintuple

Illumination

5W LED

Mechanical Stage

182mmx140mm, Two Slide Holder

Phase Contrast Unit

10X/20X/40X/100X

Product Description

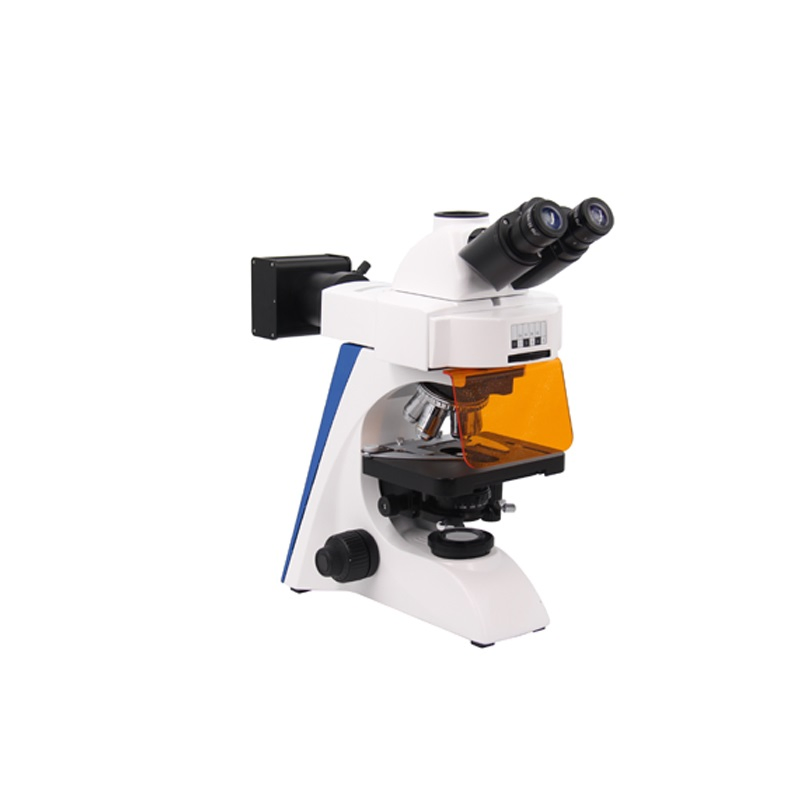

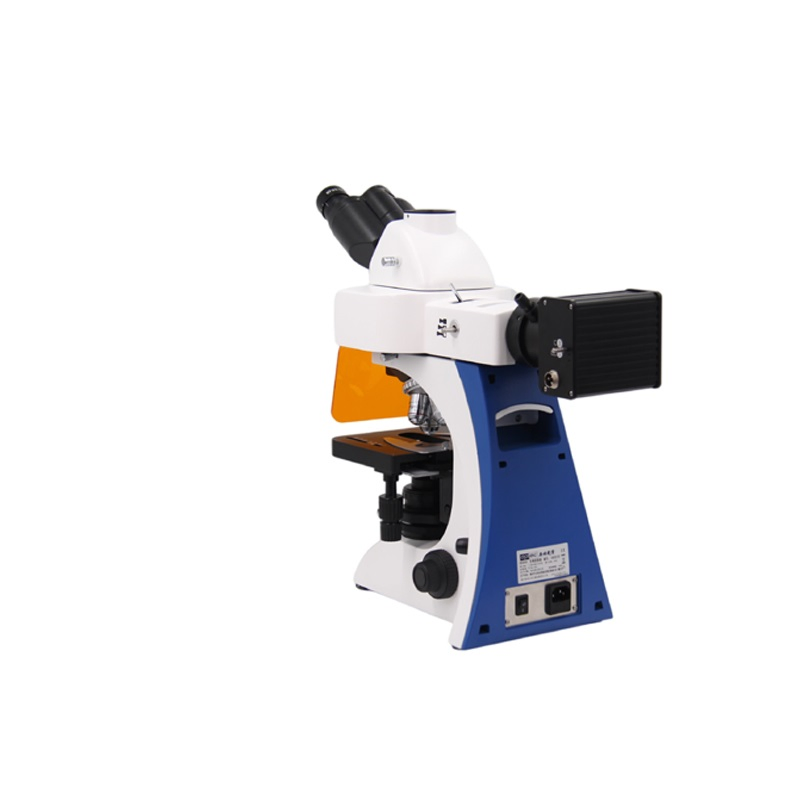

LED Fluorescent Microscope, Trinocular, B/G/V/UV

Upgradeable to Objectives With 100x Water Objective
5W LED Fluorescent Light Source For Observe In Pathology, Clinical Lab Use
Large Head Eyepiece SWF10x/22mm Eyepiece
Large Mechanical Stage 182x140mm/77x52m With Double Slide Holder
High Brightness 12V30W Halogen Koehler Illumination

Technical Specifications

Items	BK6000-FLED Specification Detail	FLED-2	TR2	FLED-4	TR4

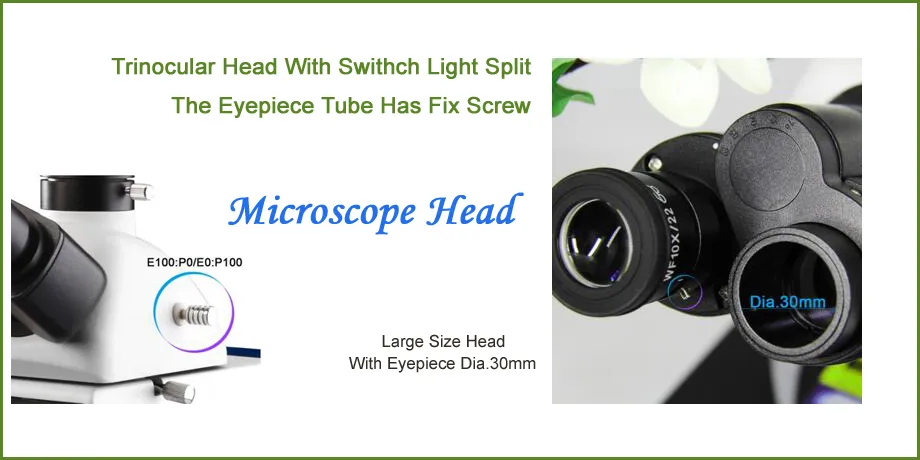

Head	Seidentopf Trinocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm	○	●	○	●
Eyepiece	WF10X/22mm (High Eyepoint)	●●	●●	●●	●●

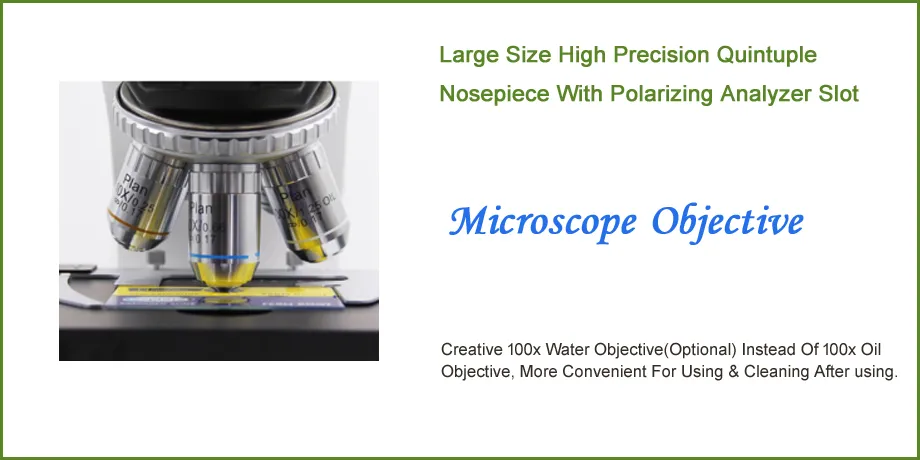

Nosepiece	Quintuple, Backward	●	●	●	●
Objectives	Infinity Plan Objective 4X, 10X, 20X, 40X, 100X	●	●	●	●
Stage	Rackless Integrated Mechanical Stage, Size 182×140mm	●	●	●	●

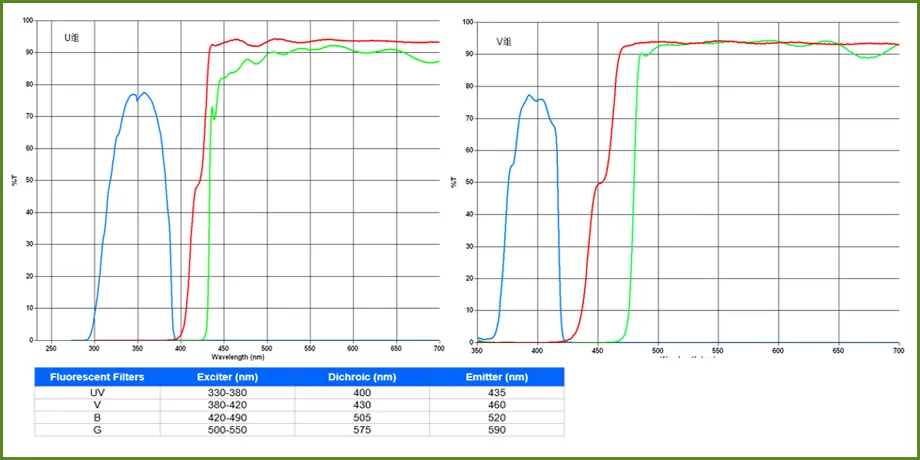

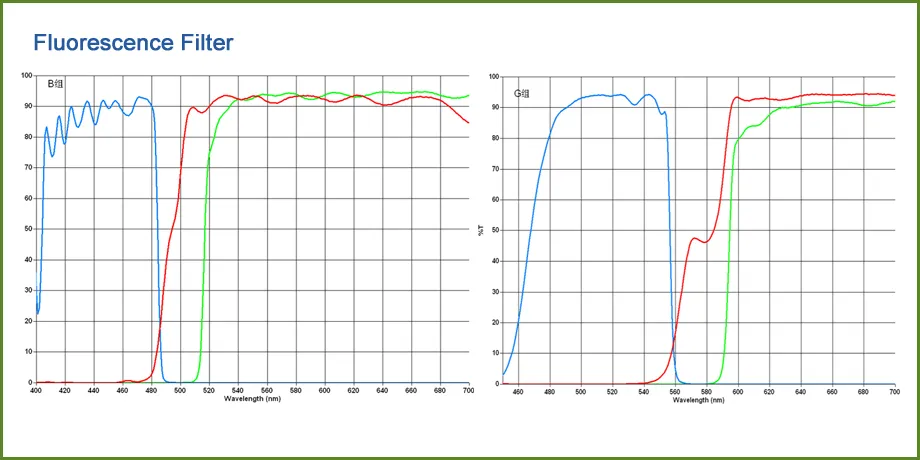

Fluorescence	B, G, U, UV Fluorescent Set, 5W LED Lamp House	-	-	●	●

Installation & Maintenance

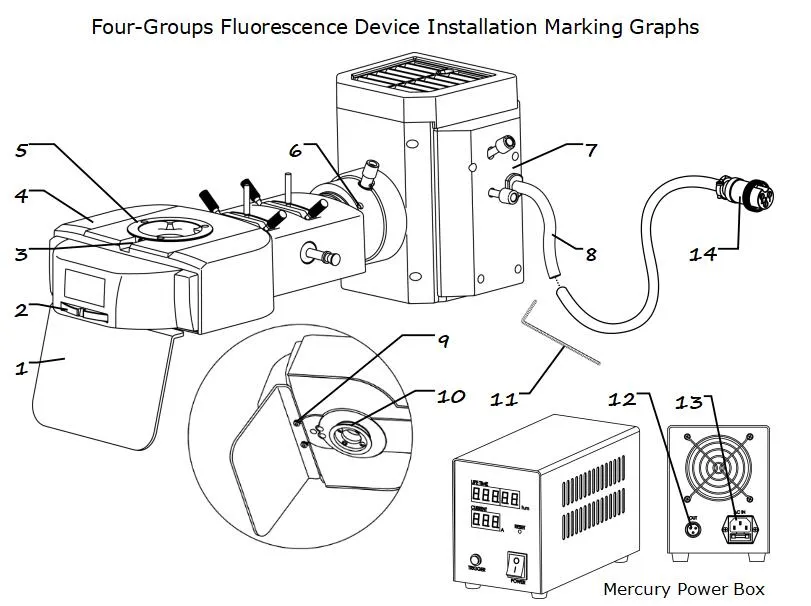

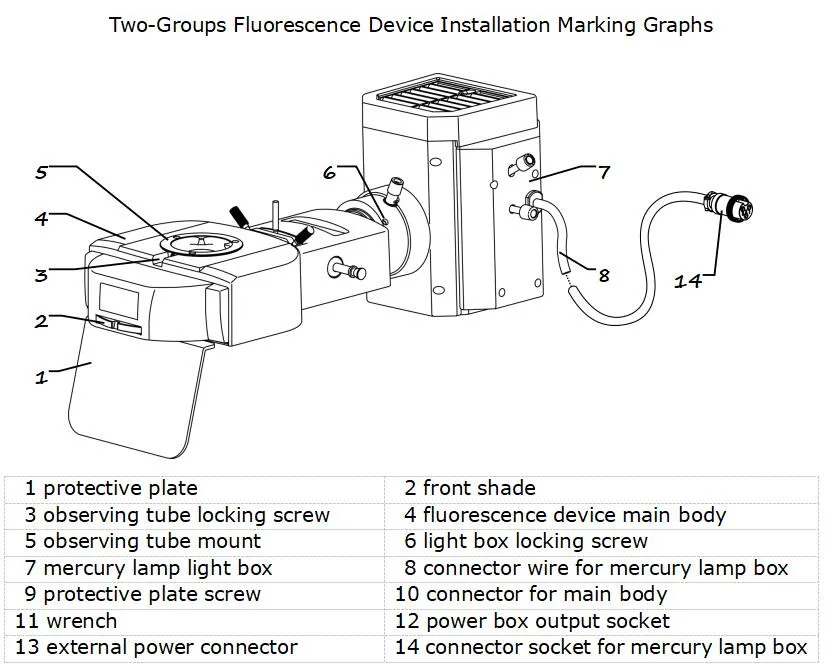

Installation Steps:

Take all parts from the package and place on a stable bench.
Install the microscope main body according to instructions.
Connect the lamp power line to the relevant socket.
Joint the observing tube with the bayonet and lock with a wrench.
Connect the tube connector to the fluorescence power box.
Fasten the main body with screws and link the connectors.

Maintenance Tips:

• Use a blow ball to clear dust. For oil/fingerprints, clean gently with absorbent cotton dipped in ethanol ether mixture (1:4).

• Avoid using solvents on non-glass parts.

• Do not disassemble the microscope parts to avoid performance damage.

Frequently Asked Questions

Q1: How do I know which model is suitable for my application? Please provide your product details, current production process, and budget. Our engineers will arrange an evaluation based on your specific requirements.

Q2: What support is provided if I don't know how to use the microscope? We provide teaching videos for both installation and operation, along with a comprehensive English manual. Online technical support is also available.

Q3: What is the warranty policy if the microscope goes wrong? We offer a 36-month quality guarantee. During this period, non-human damaged spare parts are replaced free of charge. We also provide lifelong online support.

Q4: Can you customize the product for different applications? Yes, we are dedicated to combining our current capabilities with leading supply technologies to offer customized applications for our clients.

Q5: What is the typical lead time for orders? Standard machines generally have a lead time of 2-7 days after order confirmation. Customized products may require additional time.

Q6: Is the package safe for international transportation? Yes, our packaging considers all damage factors to ensure safety. We have extensive experience exporting to over 80 countries worldwide.
