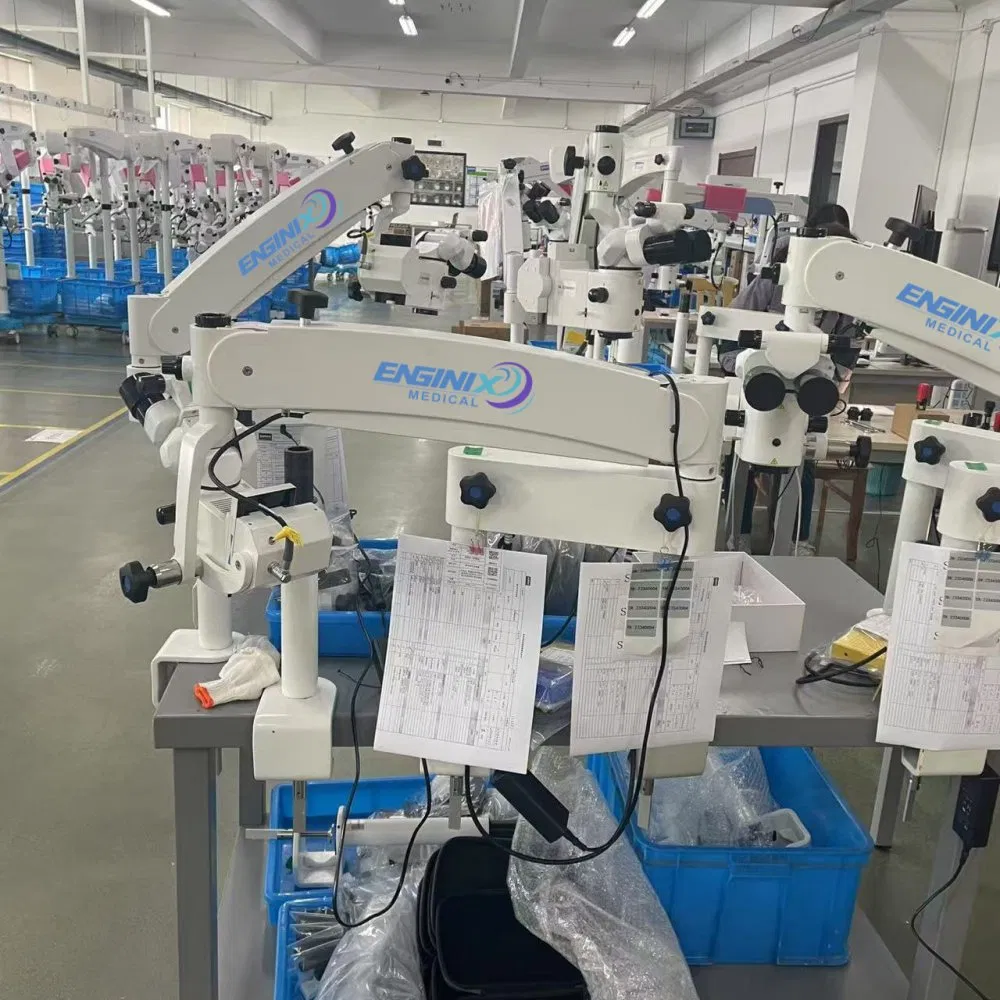

Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
1 / 5
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope
Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope

Neurosurgery Microscope Surgical Microscope Neurosurgical Microscope

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year
Send Inquiry

Product Description

● Product Overview
Model NO.
OMS 2650
Magnification
100-500X
Type
Stereomicroscope
Mobility
Portable
Principle
Optics
Camera Resolution
4 K
Inclinable Binocular
0-180° Adjustable
Total Magnification
4.3X, 6.8X, 10.6X, 16.9X, 26.5X
Pupil Distance
54mm ~ 76mm
Package Size
80.00cm * 50.00cm * 40.00cm
Surgical Microscope
● Technical Specifications
OPTICS Eyepiece 12.5X wide-angle eyepiece (10X optional)
Inclinable Binocular 0-180° adjustable
Objective Lens f=200
Diopter Adjustment ±7D
Magnification 5 Steps by drum rotation (0.4X, 0.6X, 1X, 1.6X, 2.5X)
Total Magnification 4.3X, 6.8X, 10.6X, 16.9X, 26.5X
Field of View 52mm, 33mm, 21mm, 13mm, 8.3mm
ILLUMINATION Source LED with life time > 60,000 hours
Filter Red free, Retinal Protection filter
Input Voltage AC220V±22V/50HZ, AC110V±11V/60Hz
PACK Total Weight 33 KGS
● Product Details & Application

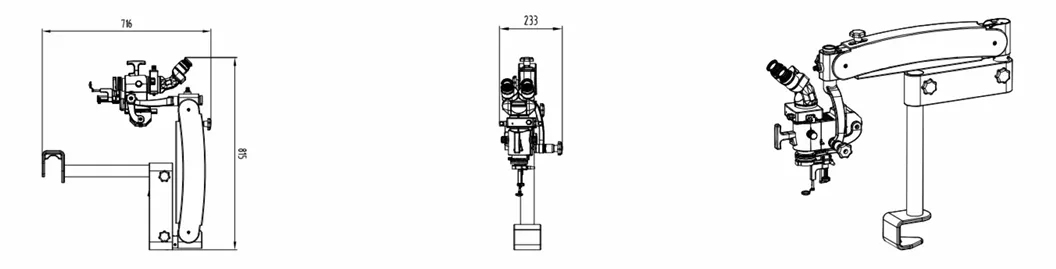

Microscope Detail 1

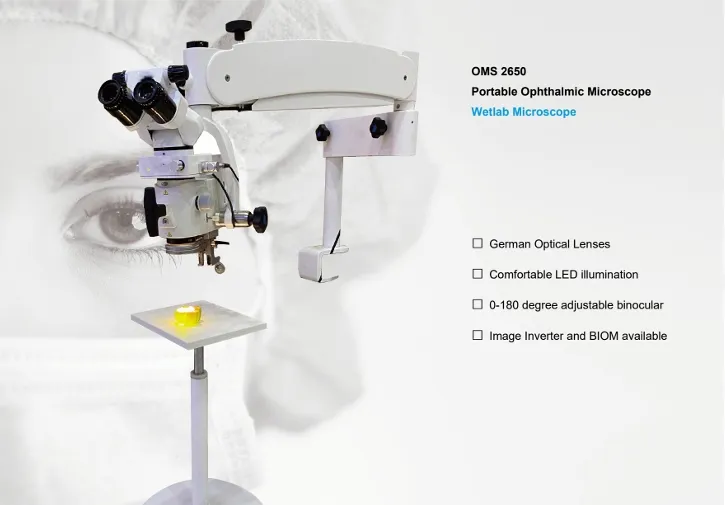

Microscope Detail 2

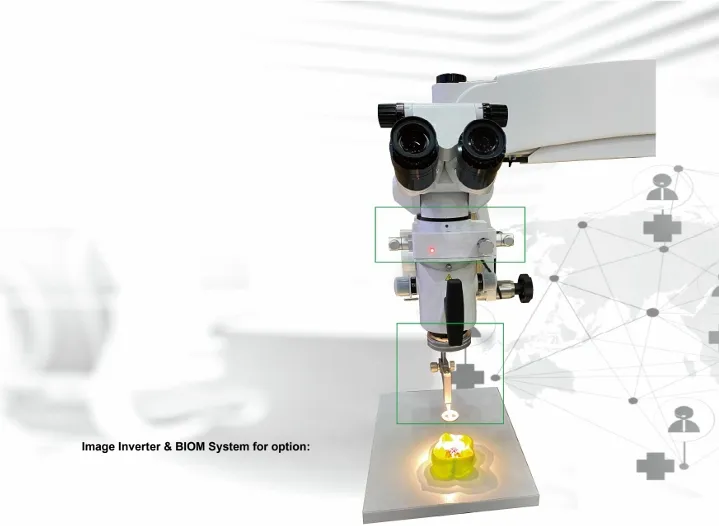

Microscope Detail 3

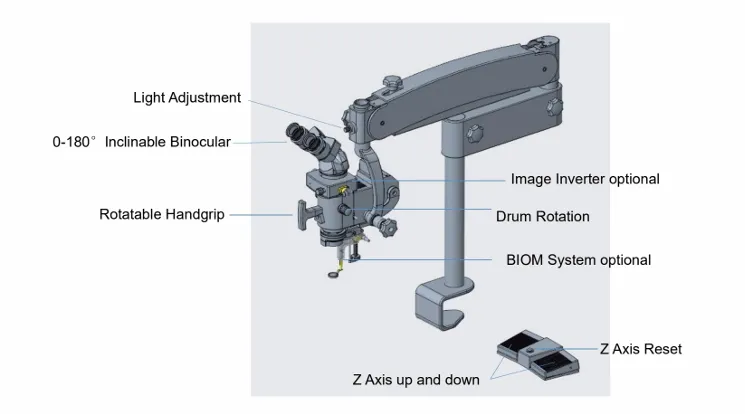

Microscope Detail 4

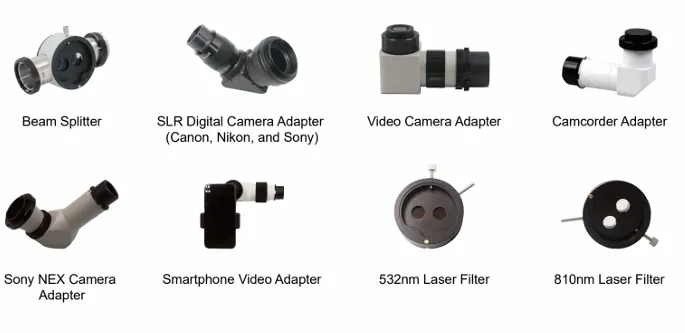

Microscope Detail 5

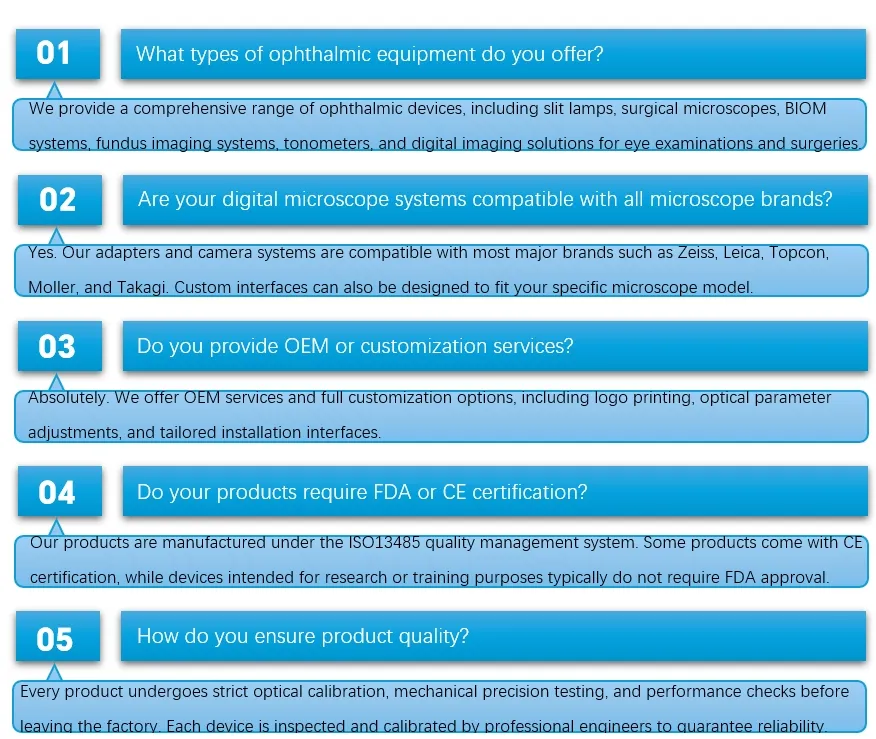

Microscope Detail 6
Clinical View 1
Clinical View 2
Clinical View 3
Product Structure

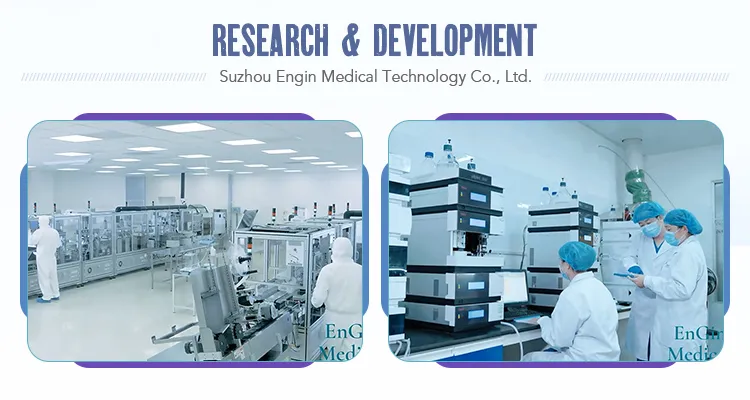

Feature 1
Feature 2
Component 1
Component 2
Component 3
FAQ
What is the magnification range of the OMS 2650?
The system provides 5 steps of magnification via drum rotation, offering total magnification levels of 4.3X, 6.8X, 10.6X, 16.9X, and 26.5X.
Does the microscope support high-definition imaging?
Yes, the model is equipped with 4K camera resolution capabilities for clear and precise digital documentation.
What type of light source is used?
It uses a high-efficiency LED illumination source with a lifespan exceeding 60,000 hours, featuring light control and aspheric red reflex design.
Can the binocular angle be adjusted for different users?
Yes, the inclinable binocular is fully adjustable from 0 to 180° to ensure ergonomic comfort for various surgical procedures.
What is the focusing range of the OMS 2650?
The microscope features motorized focusing with a range of 40mm. It typically comes with an f=200 objective lens, with 5 optional lenses available.

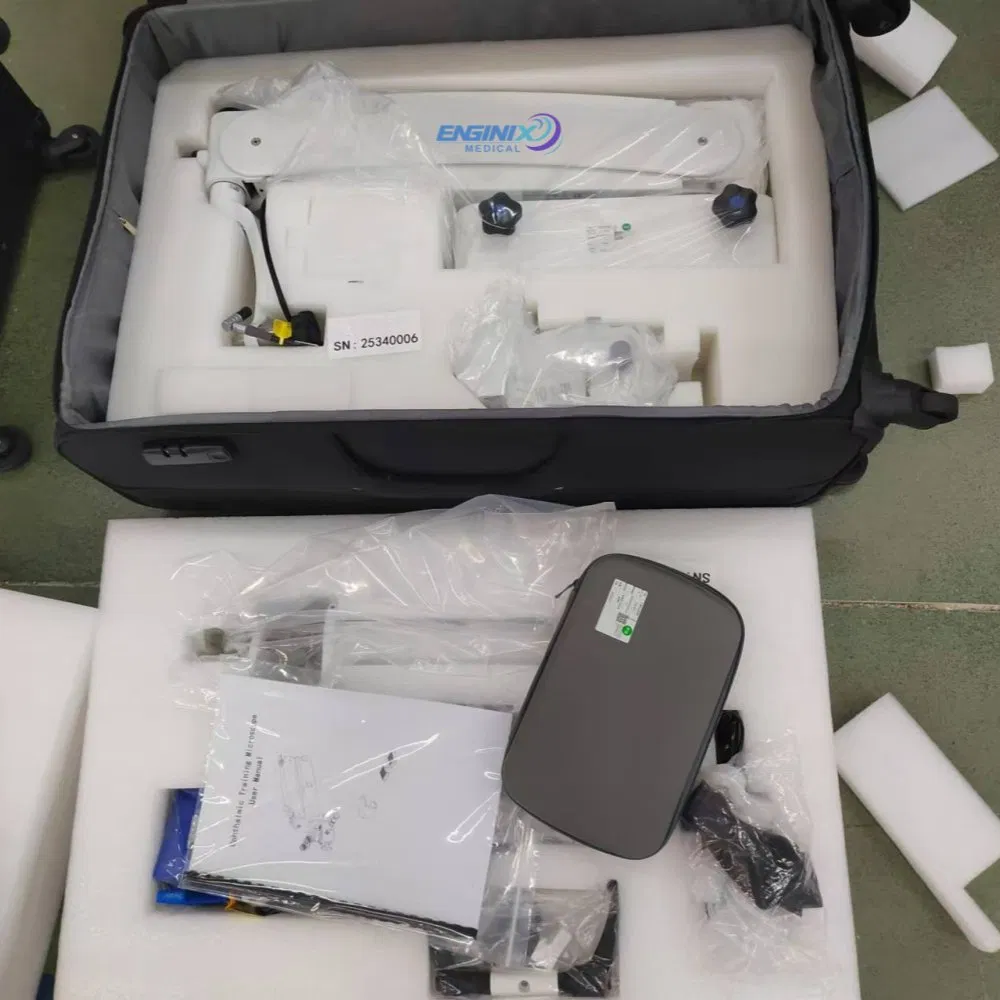

Is this microscope portable for transport?
Yes, the OMS 2650 is designed as a portable stereomicroscope and comes with a travel case for safe and convenient transport.
