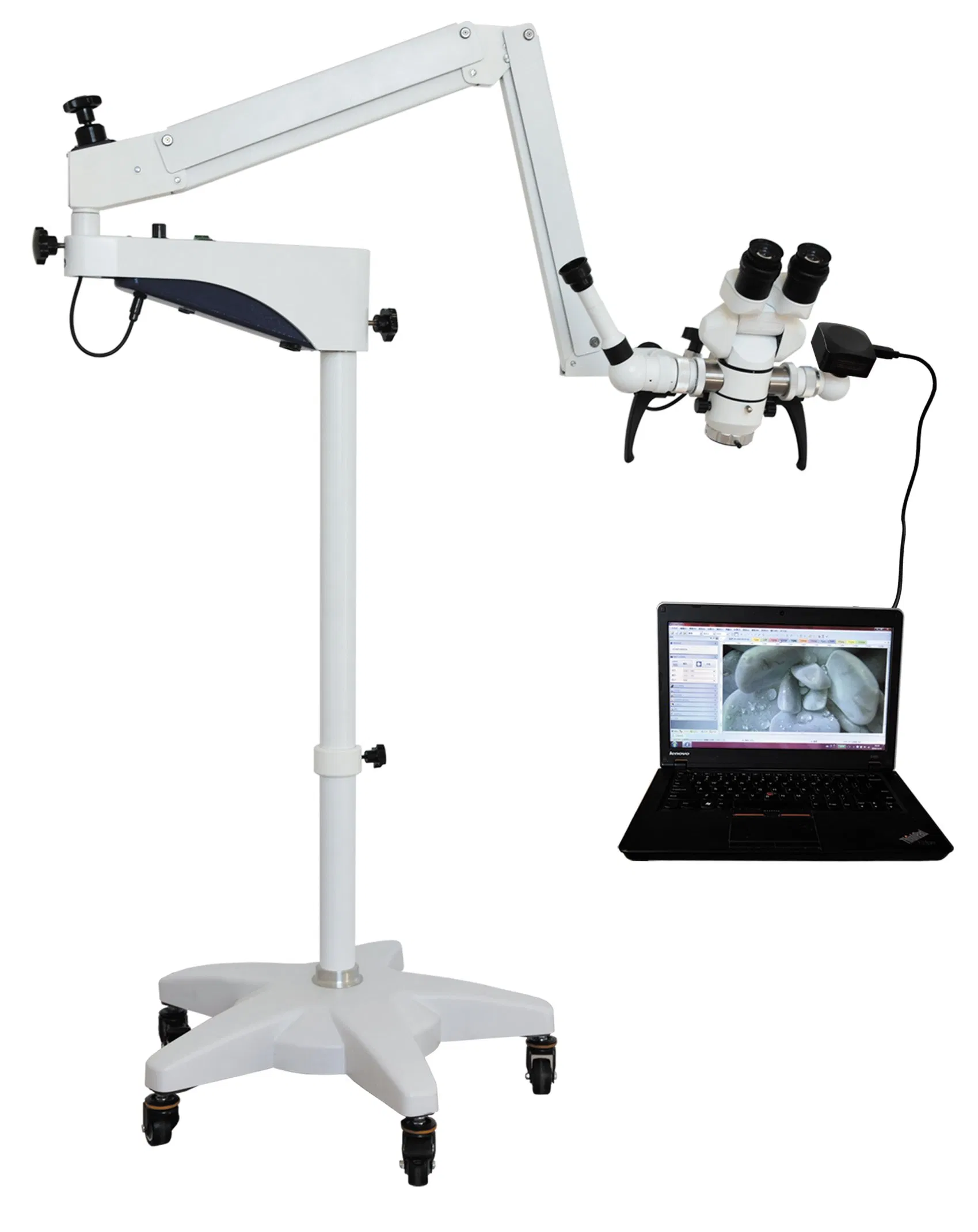

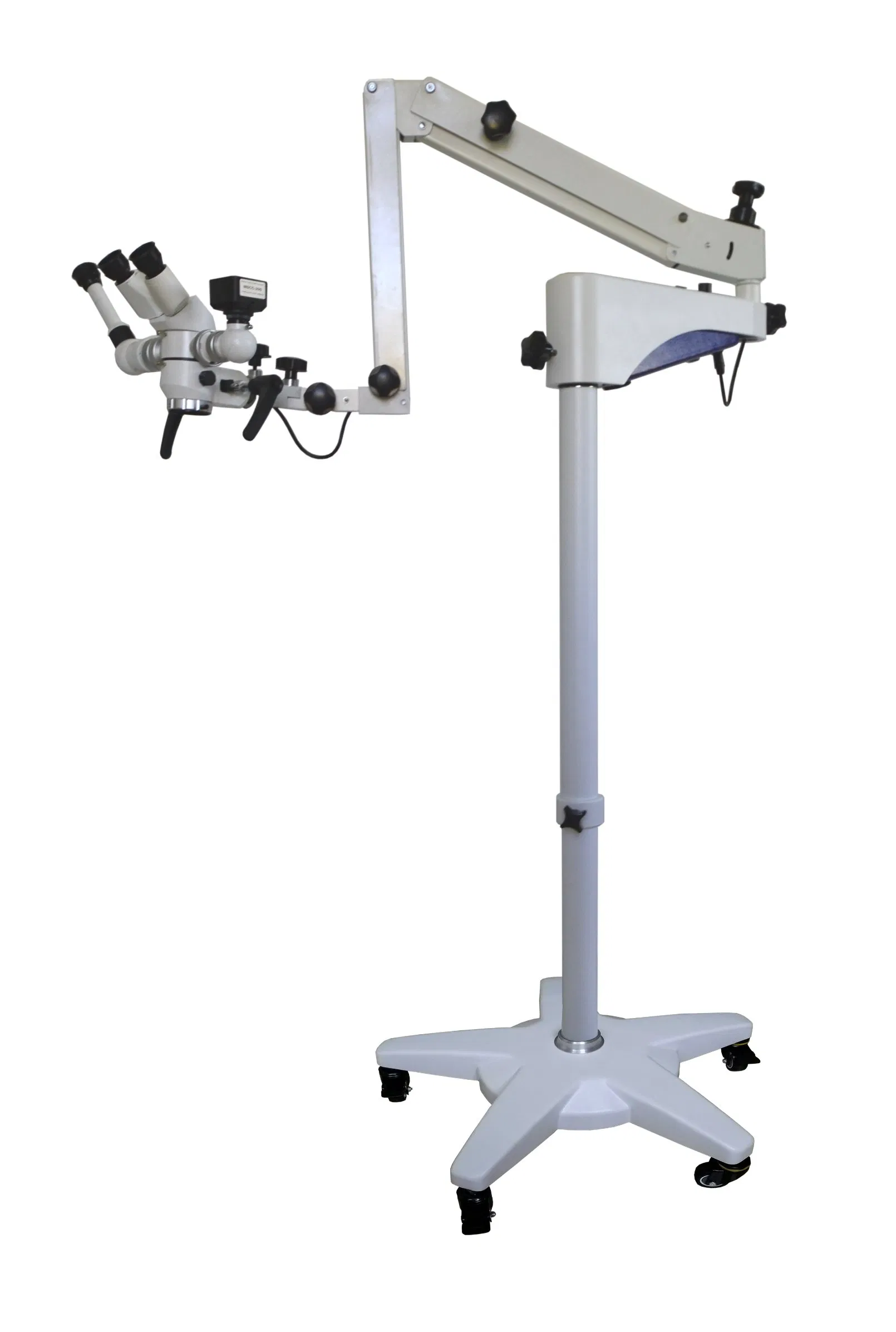

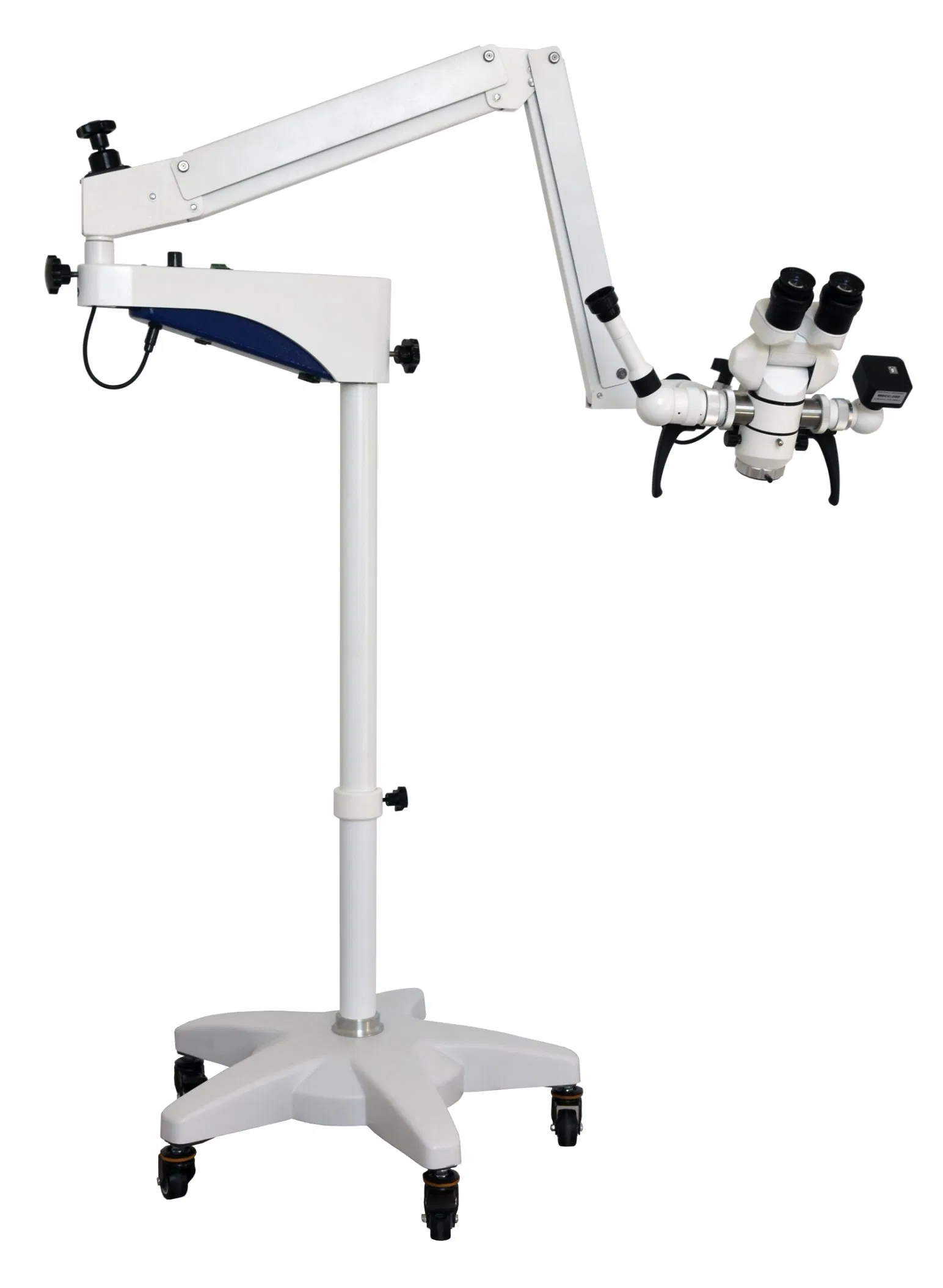

Medmount Medical 0-180 Degrees Inclinable Binocular Head and Three-Speed Zoom System Mobile Ent Surgical Microscope for Fine Surgical Examination

Still deciding? Get samples of $ !
Request Sample

Product Description

⚙️ Basic Specifications
Model NO.
WT-OPEM-02
Binocular
0-180 Degrees Inclinable
Magnification
12.5X
Interpupillary Distance
50mm-80mm
Diopter
+/- 7D
Focal Length
F=200mm & F=250mm
Magnification Changer
0.6X-1.6X
Illumination
Coaxial Illumination
Filter
Built-in Green and Yellow
Production Capacity
500 Pieces/ Day
🔍 Product Description

1. Surgical microscope is a multi-functional, multi-purpose medical optical instrument. It is widely used in otolaryngology, dentistry, ophthalmology, gynecology and surgery and other departments of microsurgery.

2. The operating microscope uses led lamp coaxial lighting, with different working distance and magnification. It is easy to operate and use.

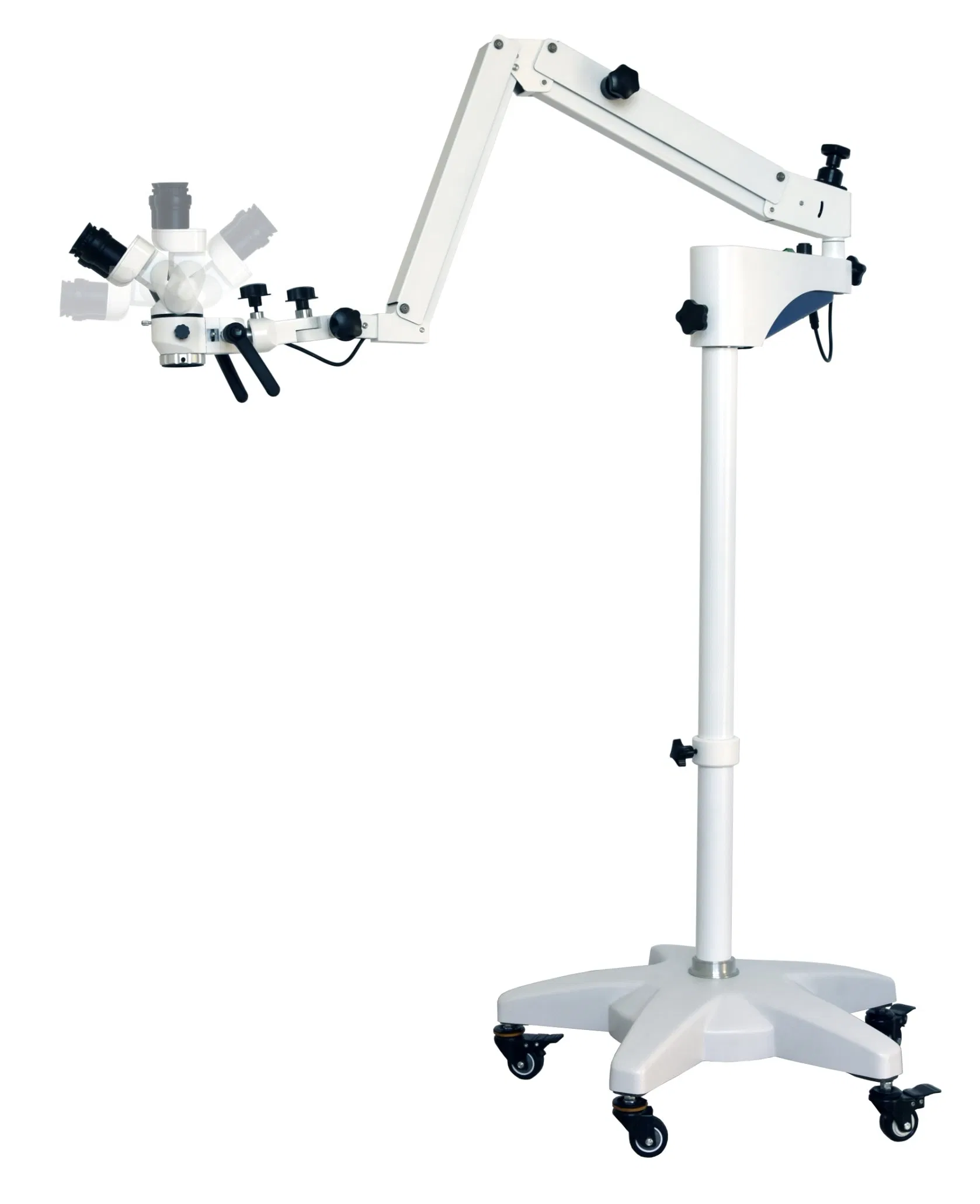

3. This product can change the angle of 180°, which is suitable for delicate surgery or examination. It is small in size, light in weight, stable in fixation and easy to move.

4. It provides surgeons or other operating room staff with magnification and high-quality images of small structures to help surgeons achieve better treatment results.

5. Surgical microscopes can be connected to camera adapters and demonstrators, providing a clearer field of view and helping doctors perform more accurate and safe surgical operations.

📋 Detailed Specifications
Table of Specification for WT-OPEM-02 Operation Microscope
Magnification of binocular8X
Binocular0-180° inclinable
Magnification of eyepiece12.5X
Interpupillary distance50mm-80mm
Diopter±7D
Focal length of objectiveF=200 & F=250mm
Magnification changer0.6X, 1X, 1.6X
Total magnification4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance10mm
IlluminationCoaxial LED 10W, >40000lx, Adjustable brightness
Balancing arm2-part arm with universal joints, counterweight adjustable
Power supplyAC100V-AC240V
🔬 Optical Characteristics (12.5X Eyepiece)
Focal length of objective F=200mm F=250mm
Magnification on handwheel 1.6X1X0.6X 1.6X1X0.6X
Total magnification 16X10X6X 12.8X8X4.8X
Linear field (mm) 152440 193050

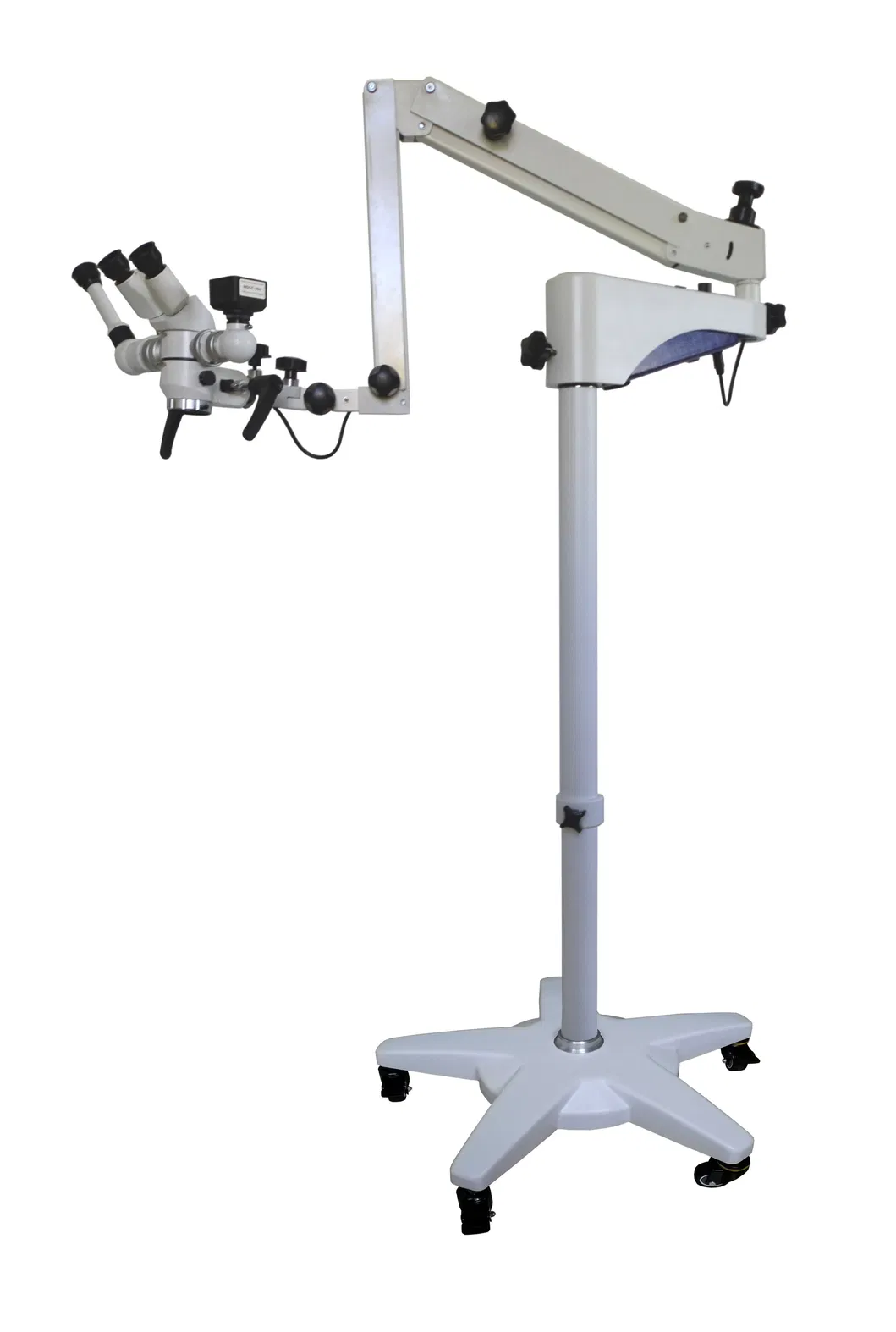

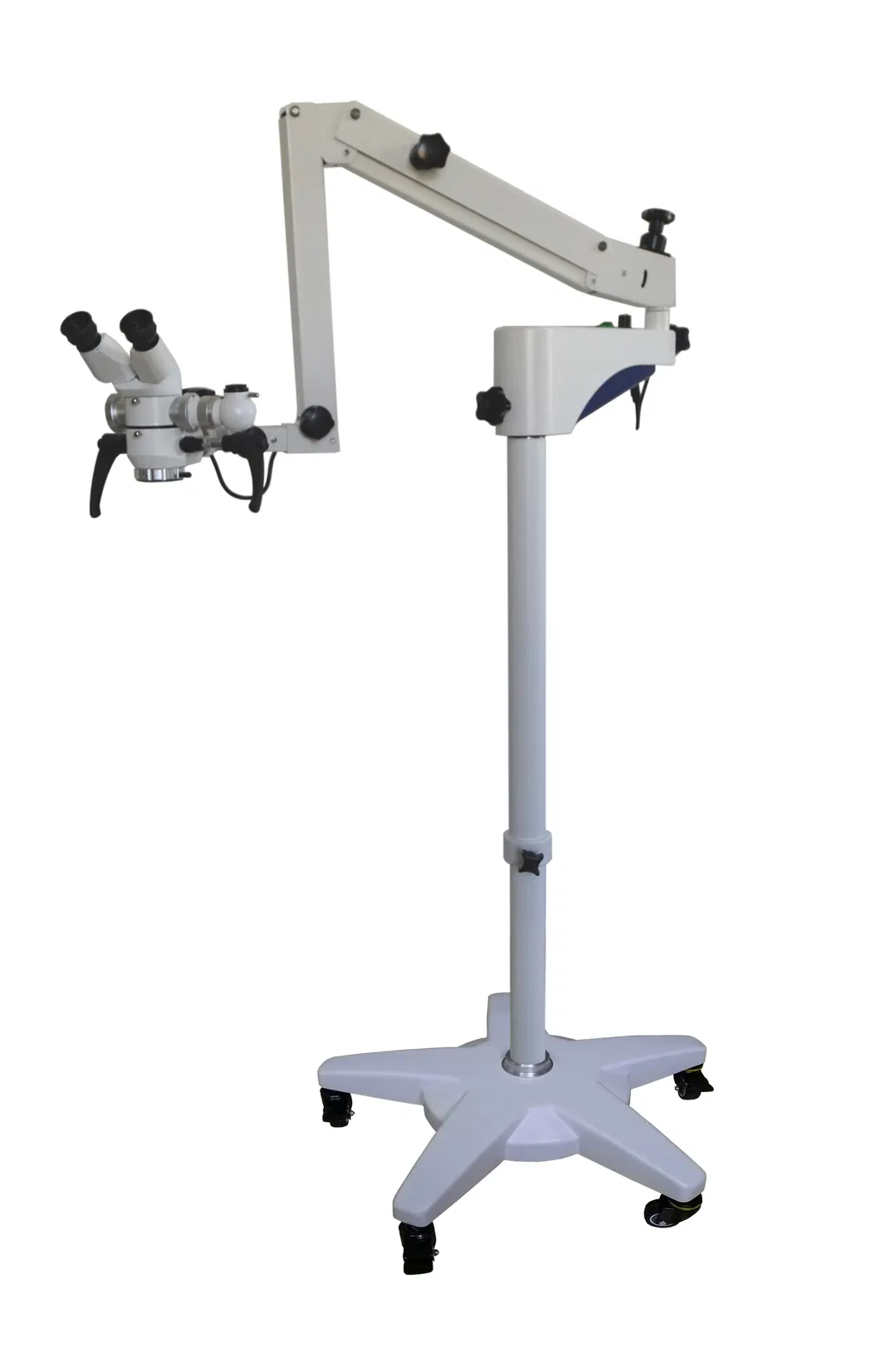

🖼️ Product Gallery
🌟 Why Choose Our Microscope
Quality Assurance

Manufacturing operates strictly under ISO13485 & ISO9001 standards controlled by a dedicated QA team. Products are CE/FDA certified.

2 Years Warranty

Enjoy 24 months of quality assurance and life-long maintenance service for any product faults after purchase.

Full Customization

We support product customizations and have built specialized molds for customers across US, UK, Australia, and more.

Quick Response

Our service team provides 24-hour support, aiming to answer within 2 hours to solve any technical issues.

📂 Additional Product Views
Full Product Overview
❓ Frequently Asked Questions
What medical fields is this microscope suitable for?
This surgical microscope is highly versatile and widely used in ENT (Otolaryngology), Dentistry, Ophthalmology, Gynecology, and various other microsurgery departments.
Does the binocular head allow for angle adjustment?
Yes, it features a 0-180 degree inclinable binocular head, allowing surgeons to adjust the viewing angle for maximum comfort and precision during delicate procedures.
What type of lighting system is used?
It uses a high-performance 10W LED coaxial illumination system. The brightness is adjustable and provides over 40,000lx for clear visualization.
Can I connect a camera or external monitor?

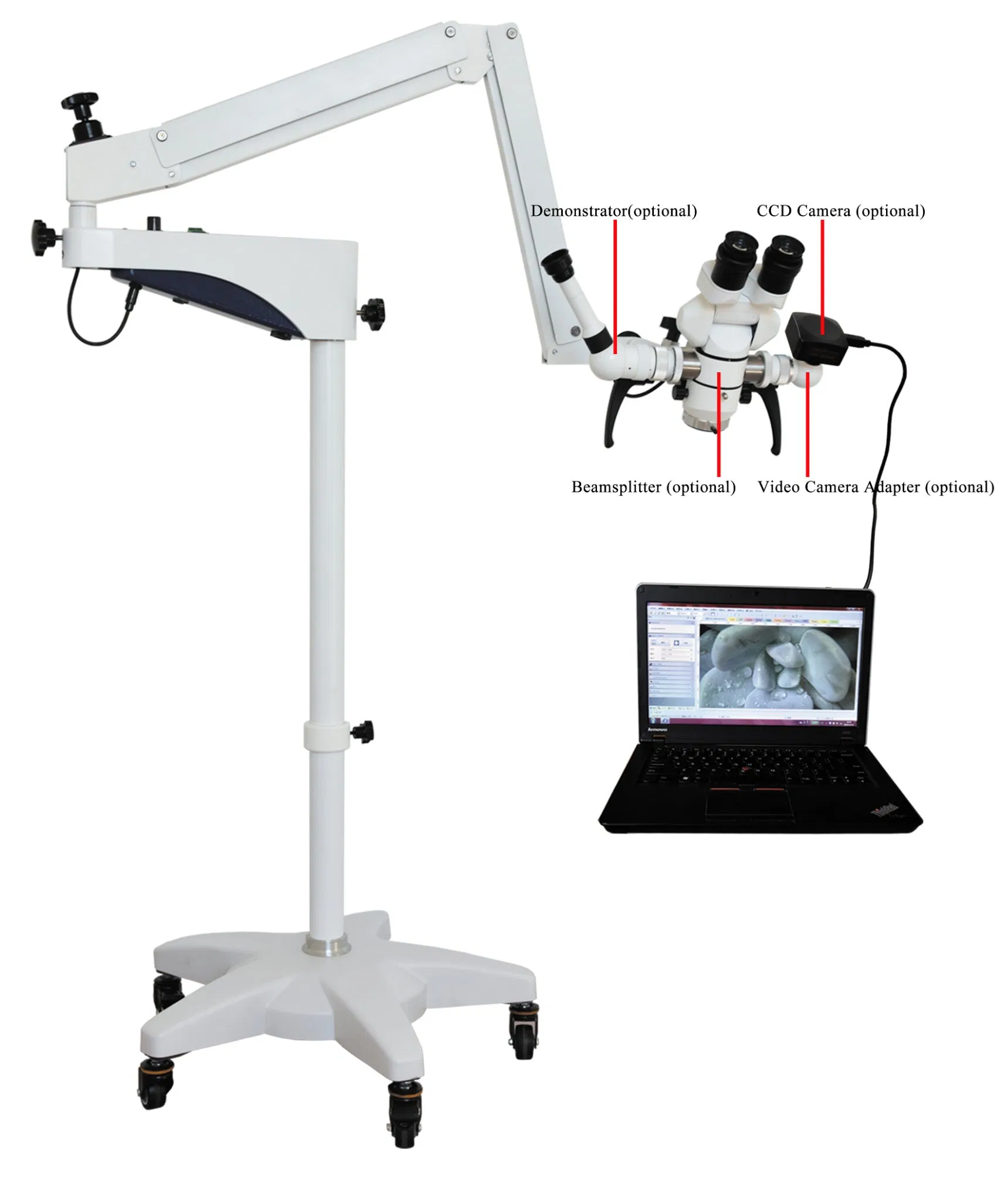

Absolutely. The microscope is compatible with various optional accessories including beamsplitters, video camera adapters, SLR adapters, and HD monitors.
What is the warranty and maintenance policy?
We provide a 2-year warranty from the date of purchase. Additionally, we offer life-long maintenance support to ensure the long-term reliability of your equipment.
Are there different objective lenses available?
The standard configuration includes F=200mm and F=250mm objectives. Optional objectives like F=300mm, F=400mm, or a zoom objective (200mm-300mm) are also available.
