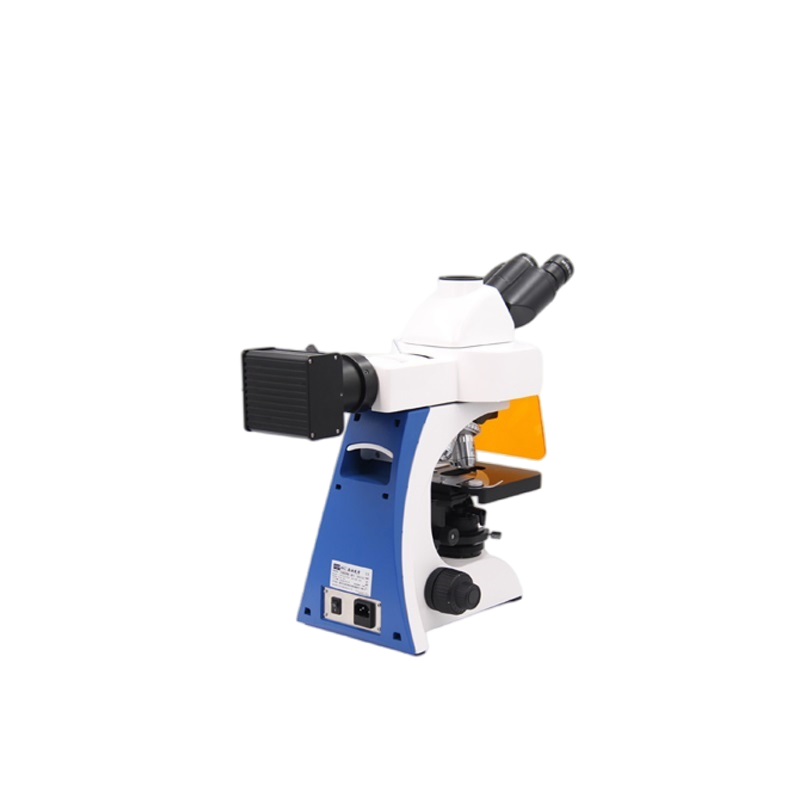

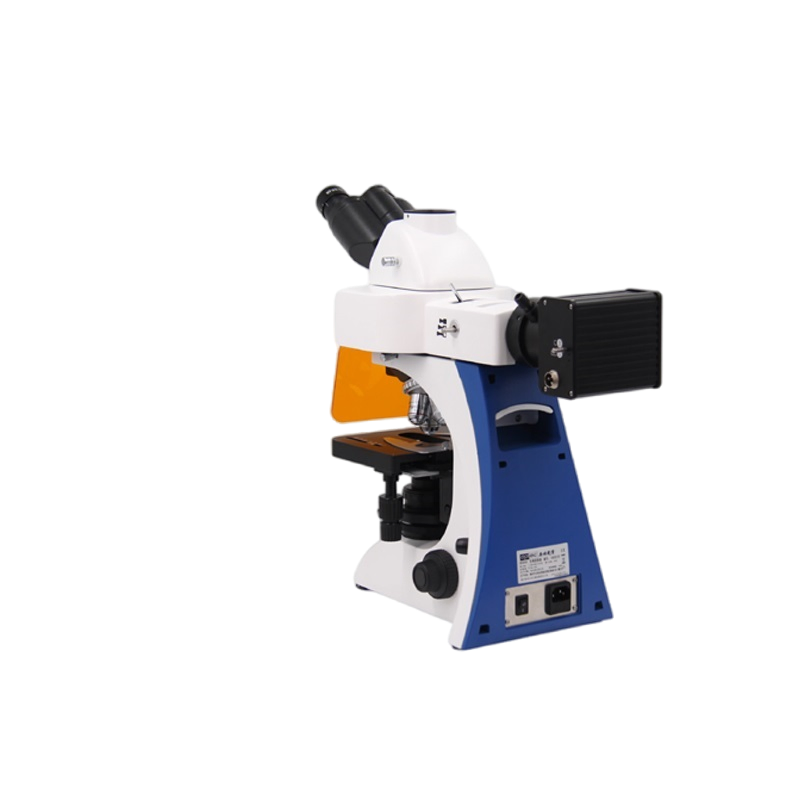

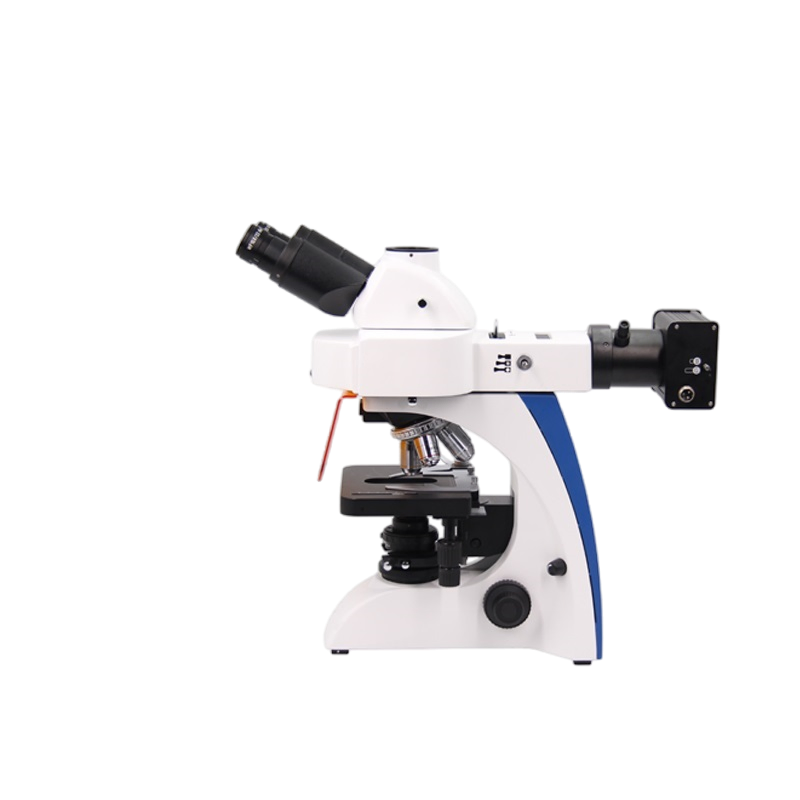

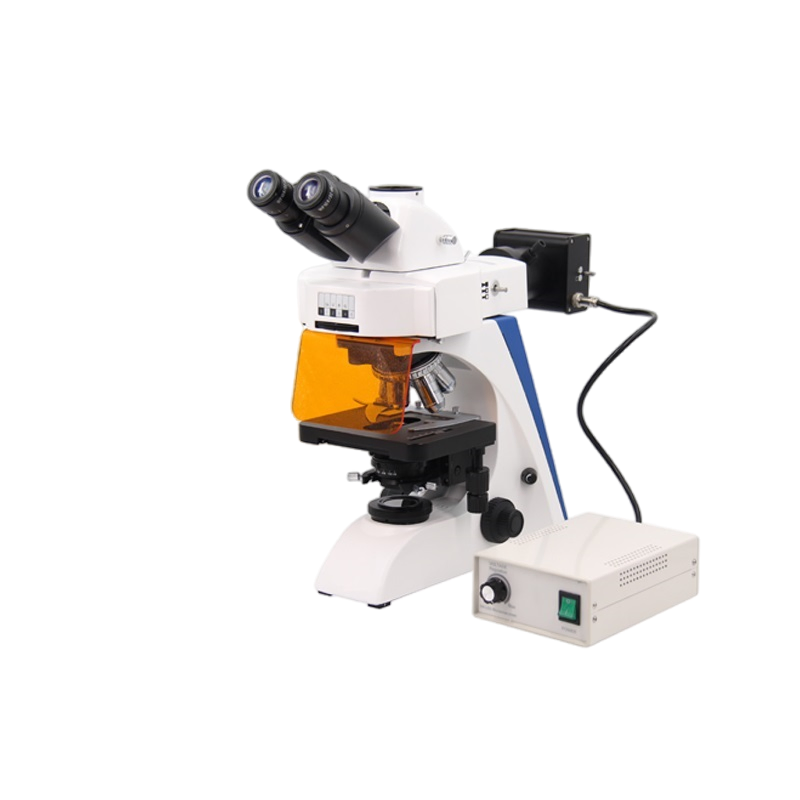

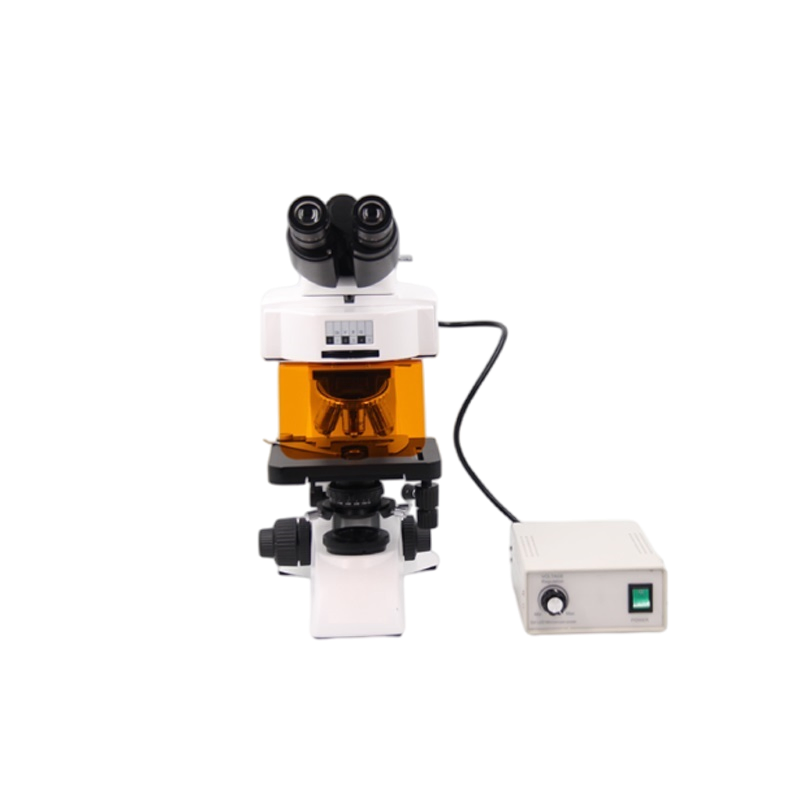

LED Fluorescent Microscope, Trinocular, B/G/V/UV
| BK6000-FLED Specification Items | FLED-2 / TR2 | FLED-4 / TR4 | |
|---|---|---|---|

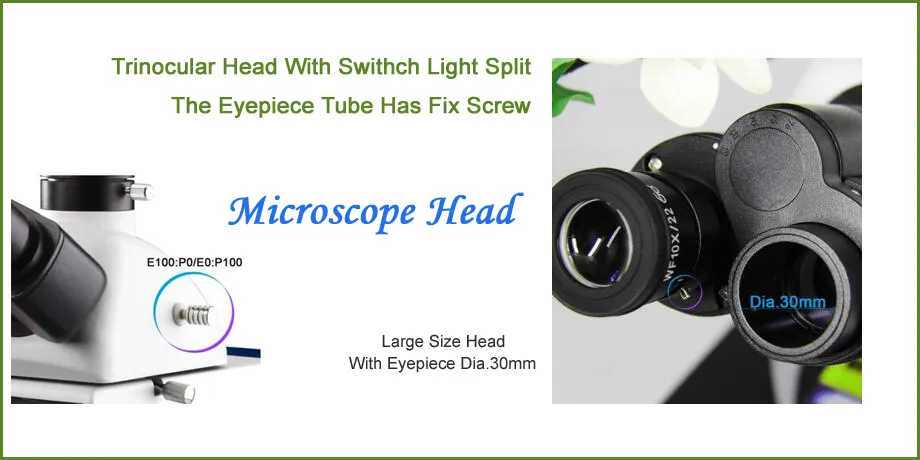

| Head | Seidentopf Binocular/Trinocular Head Inclined 30°, Rotatable 360° | Standard | Standard |
| Eyepiece | WF10X/22mm (High Eyepoint) | Standard | Standard |

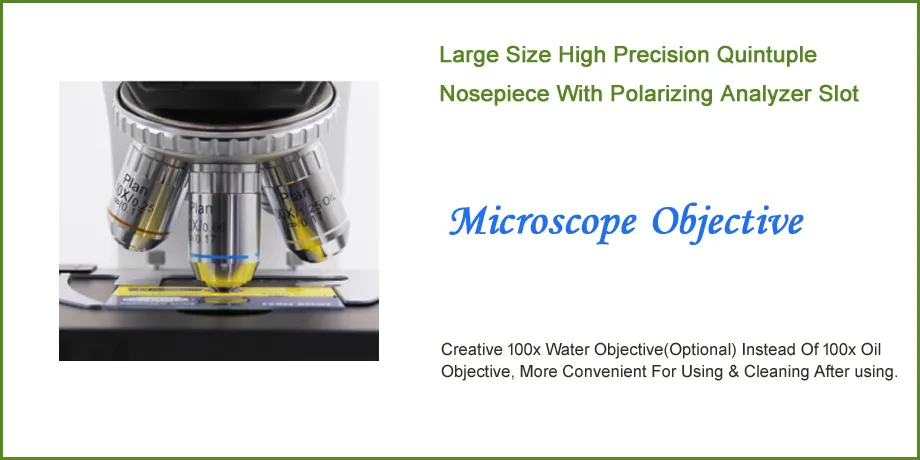

| Nosepiece | Quintuple, Backward | Standard | Standard |
| Infinity Plan Objectives | 4X, 10X, 20X, 40X, 100X (Oil) | Standard | Standard |
| Working Stage | Rackless Mechanical Stage, Size 182×140mm | Standard | Standard |
| Condenser | Swing-out Condenser, N.A.0.9/0.13 | Standard | Standard |
| Illumination | Transmit Light 5W LED Koehler Illumination | Standard | Standard |

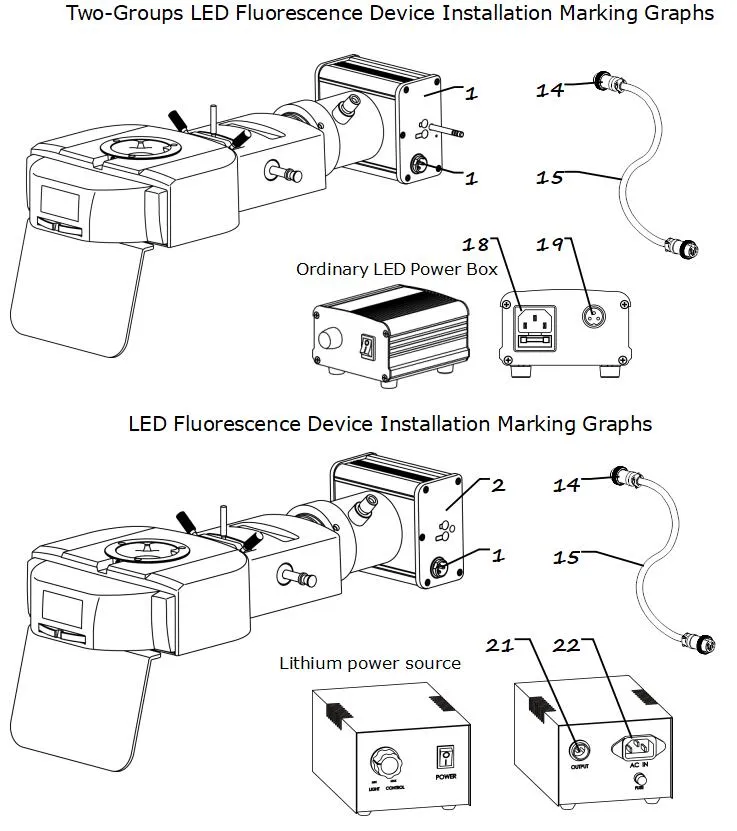

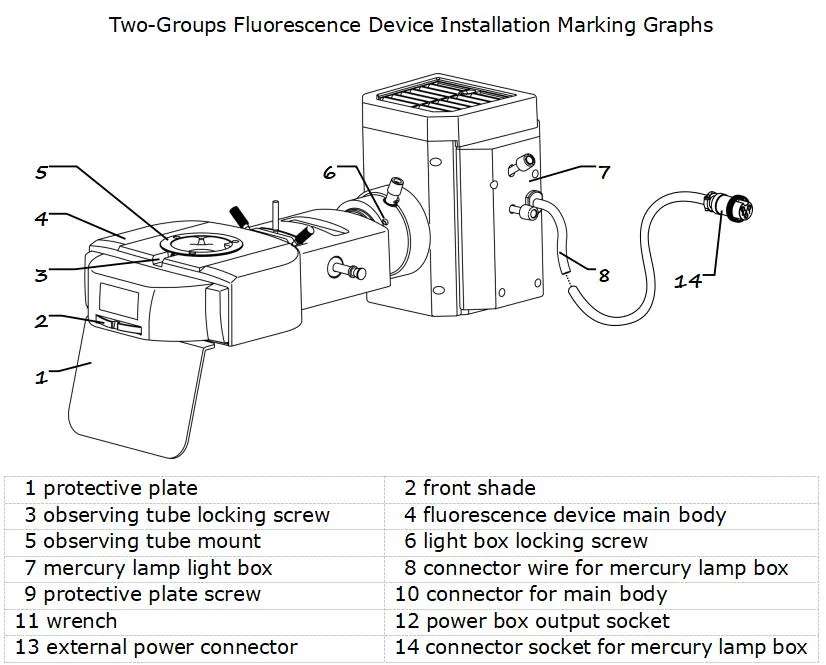

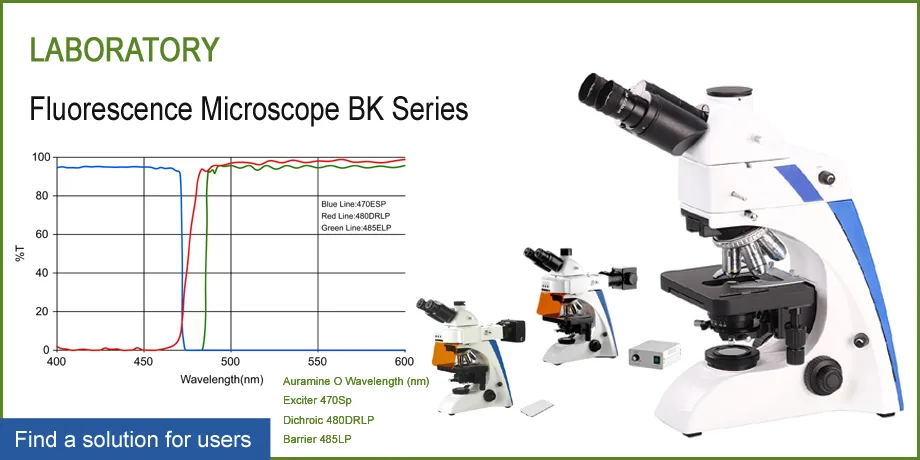

| Fluorescence | 6 Holes Disc Fluorescent Unit, 5W LED Lamp House | B, G | B, G, U, UV |
• Cleaning: If the lens surface has dust, use a blow ball. For fingerprints or oil, clean gently with absorbent cotton or lens paper dipped in an ethanol-ether mixture (1:4 ratio).
• Safety: Absolute alcohol is flammable. Turn off power and keep away from open fire during cleaning. Ensure indoor ventilation.
• Parts: Do not use solvents on non-glass parts. Do not disassemble microscope parts to avoid performance damage.
