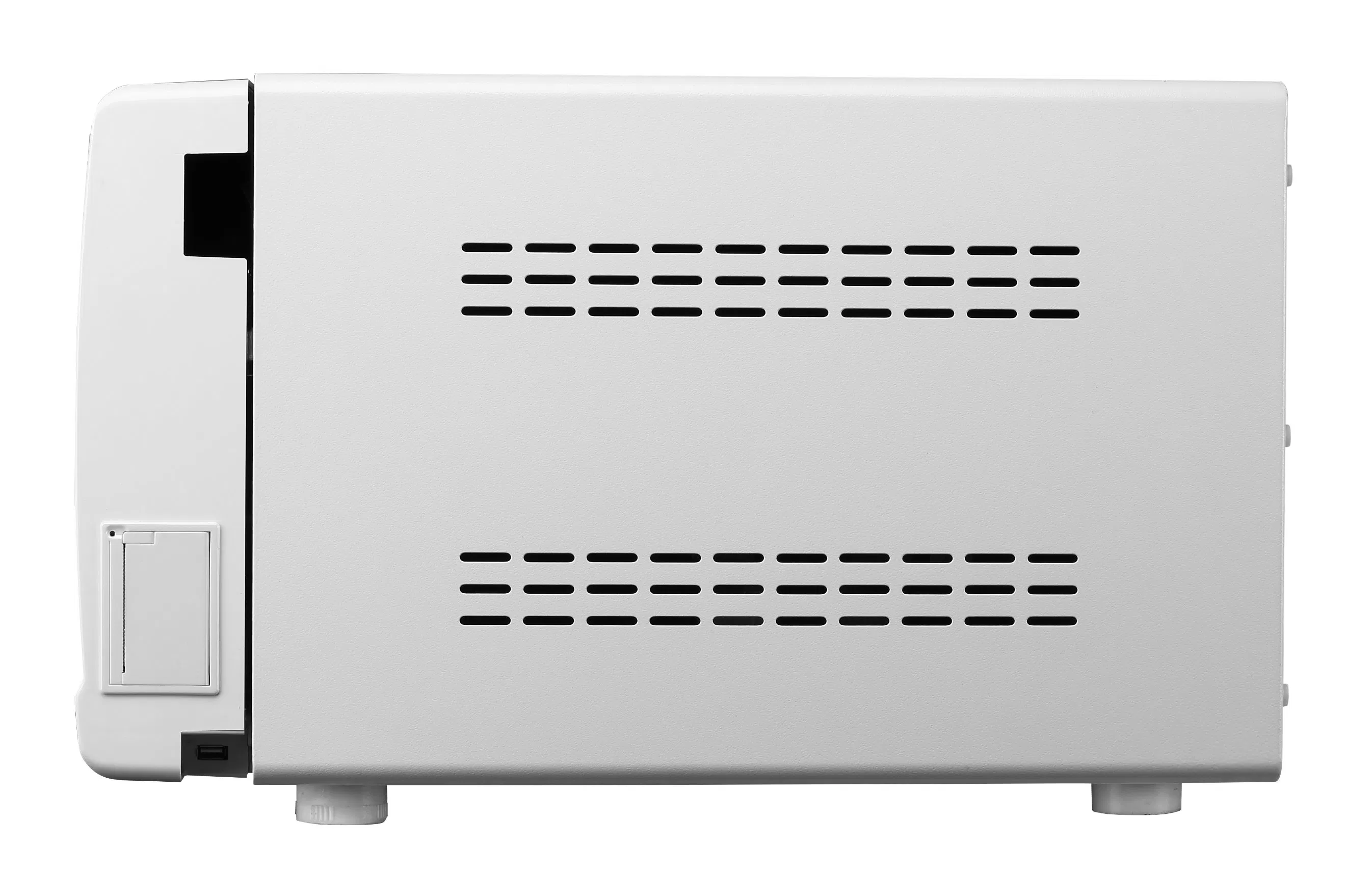

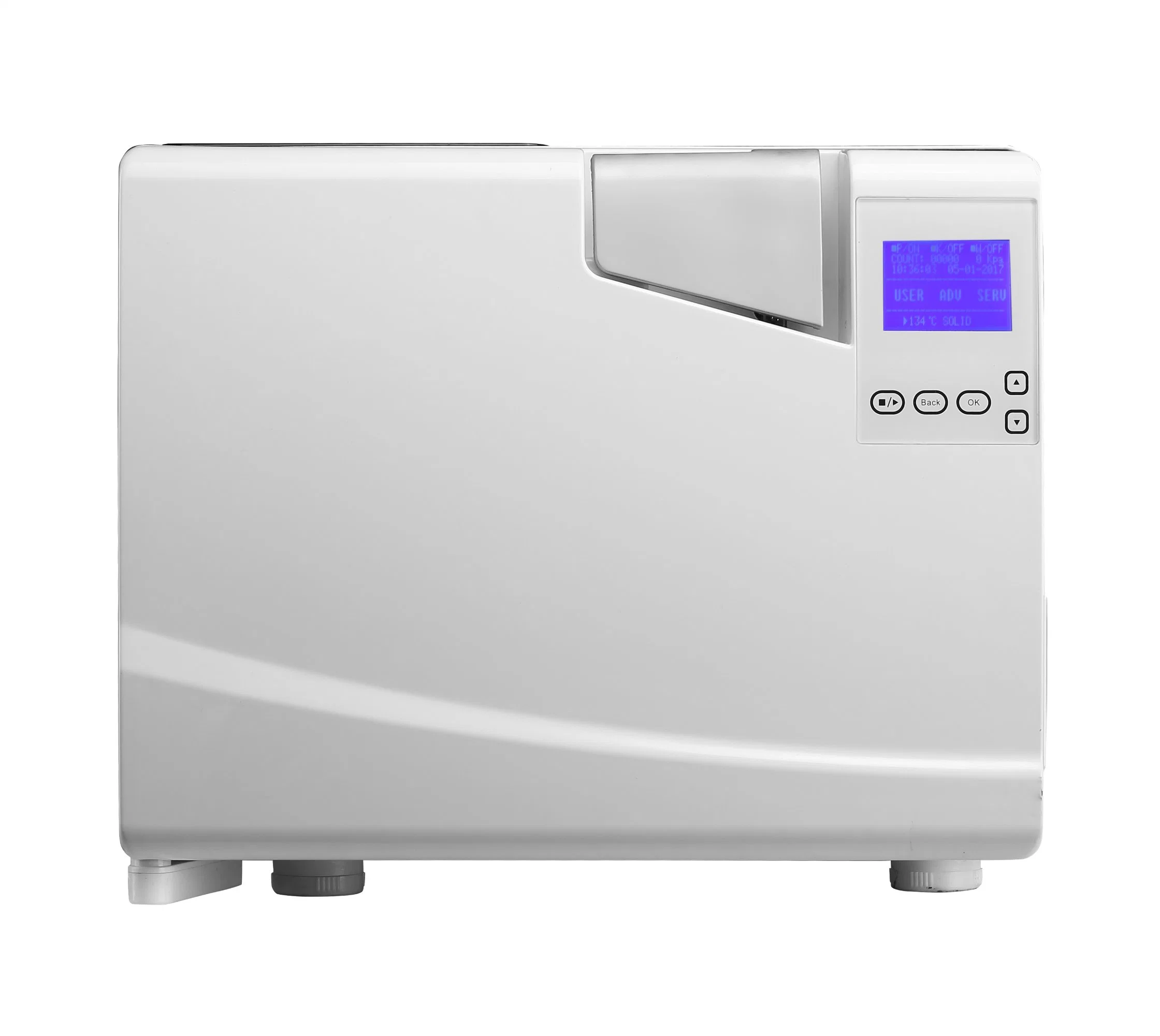

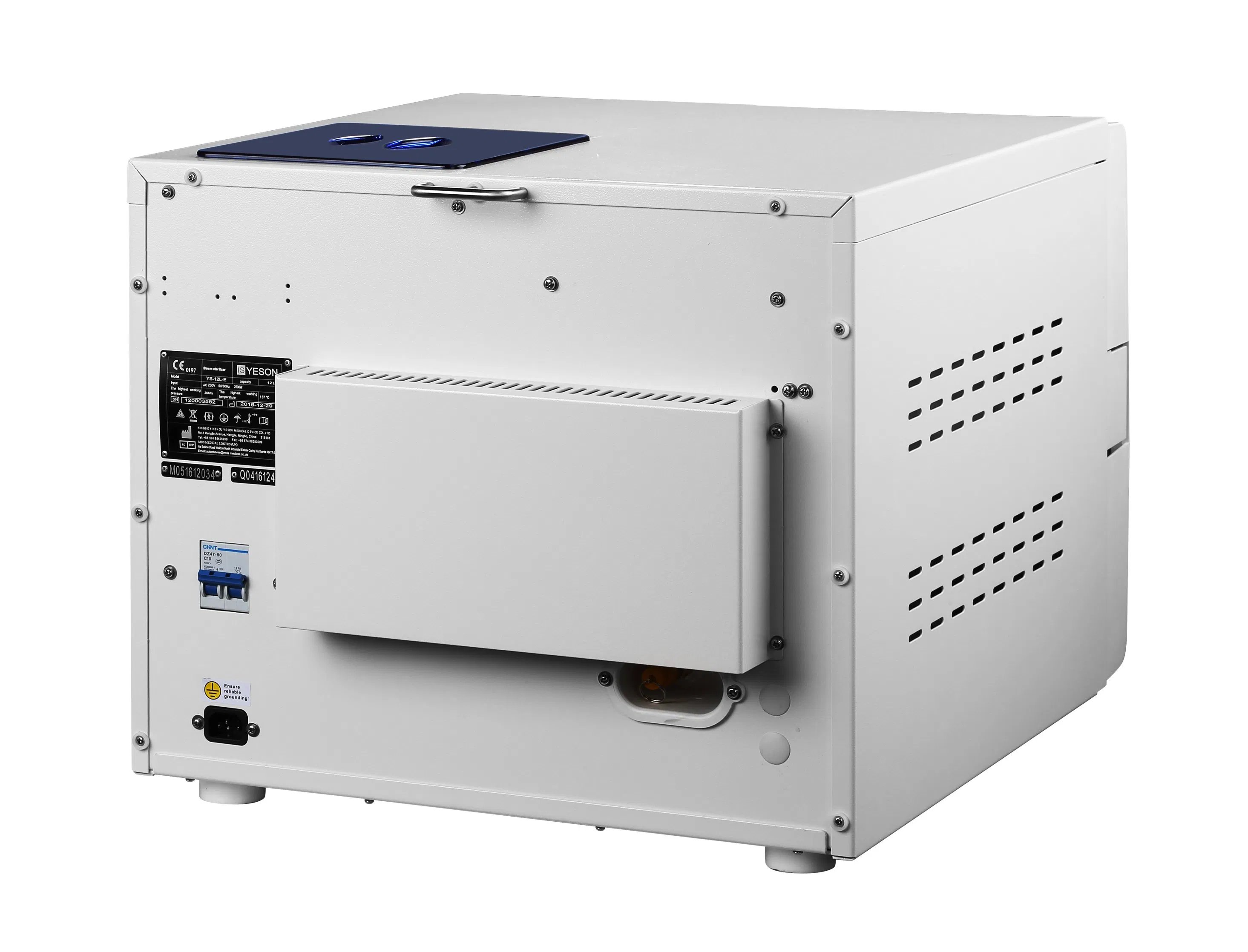

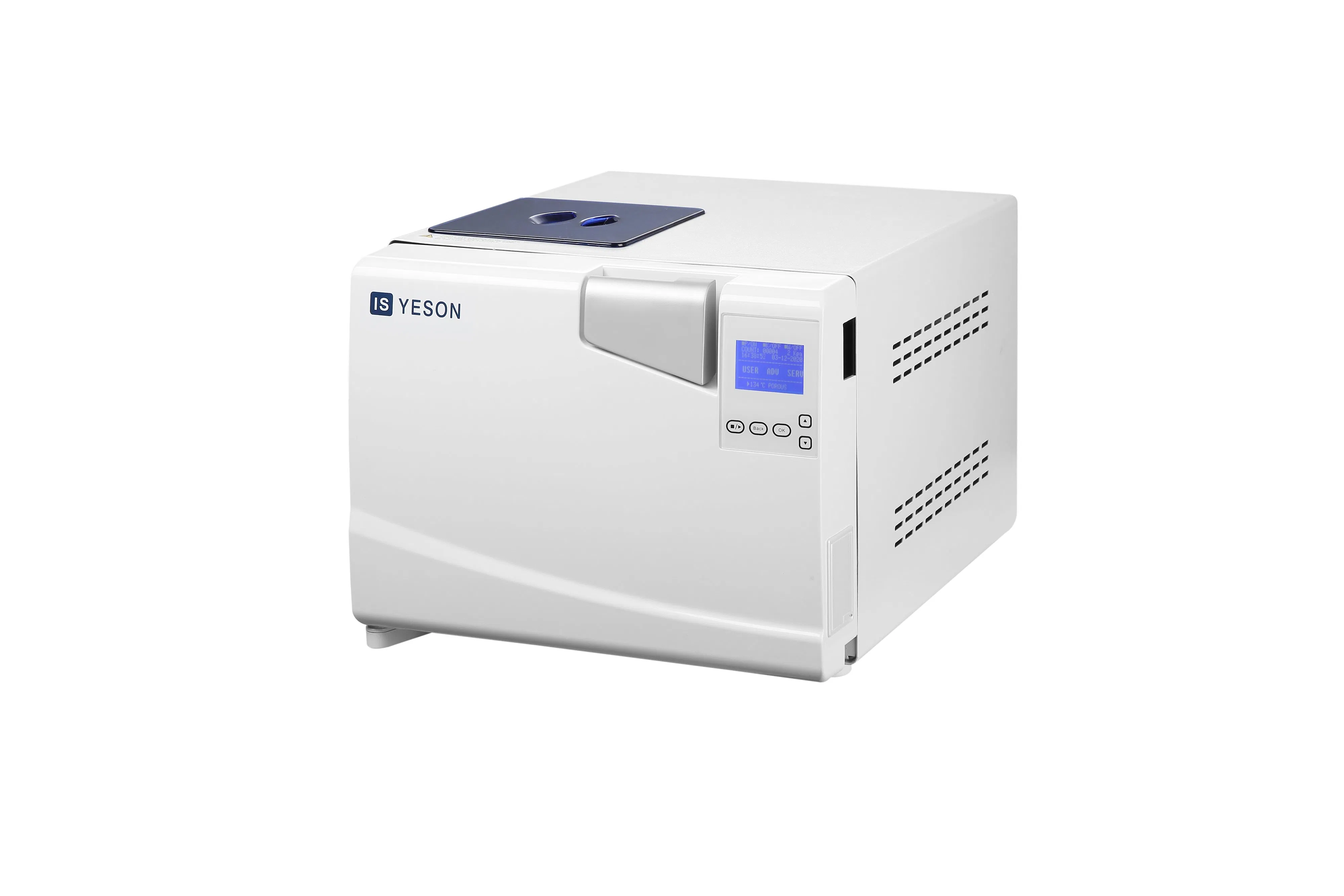

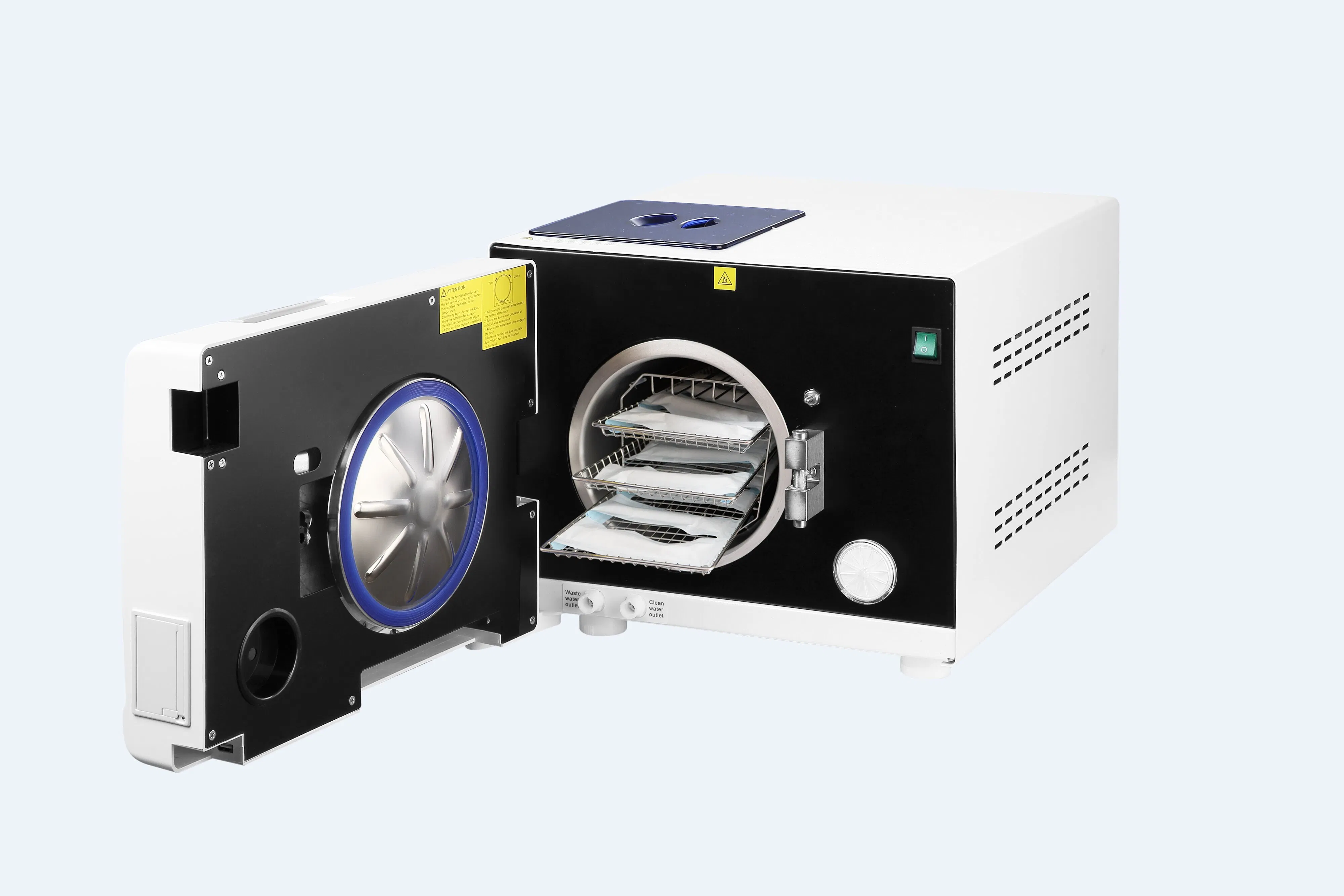

8L Class B Tabletop Steam Autoclave for Sterilization with LCD
8L Class B Tabletop Steam Autoclave for Sterilization with LCD
8L Class B Tabletop Steam Autoclave for Sterilization with LCD
8L Class B Tabletop Steam Autoclave for Sterilization with LCD
8L Class B Tabletop Steam Autoclave for Sterilization with LCD
1 / 5
8L Class B Tabletop Steam Autoclave for Sterilization with LCD
8L Class B Tabletop Steam Autoclave for Sterilization with LCD
8L Class B Tabletop Steam Autoclave for Sterilization with LCD
8L Class B Tabletop Steam Autoclave for Sterilization with LCD
8L Class B Tabletop Steam Autoclave for Sterilization with LCD

8L Class B Tabletop Steam Autoclave for Sterilization with LCD

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Class B Tabletop Steam Autoclave

Basic Specifications

Model NO.
YS-8L-pro-E
Electric Tension
230V
LCD Display
With LCD Display
Material
Stainless Steel
Power Supply
230V/50Hz/1500W
Clean Water Tank
2.5L
Waste Water Tank
2.0L
Chamber Size
ø170X320mm
Capacity
8L
Net Weight
45kg
HS Code
84192000
Reprocessing Speed
Cycle incl drying: 20min

Key Features

⏱️ Fast Reprocessing

Top performance Class B sterilization cycle including drying is completed in just 20 minutes.

📐 Compact Design

Optimized for small disinfection-room spaces without compromising performance.

🖨️ Built-in Printer

Integrated printing system saves space and ensures easy record-keeping.

💧 Dual Water Tanks

Independent hidden waste water tank prevents cross infection; Open-top fresh water tank for easy cleaning.

🔒 Safety System

Equipped with Electronic and Mechanical locker systems plus short circuit protection.

🇪🇺 Standard Compliance

Fully compliant with European sterilization standards for medical equipment.

Technical Parameters

Process Vacuum Times Sterilizing Time Temperature Pressure Dry Time
121ºC/SOLID1 *20min *121ºC110kPa3 *
121ºC/POROUS3 *20min *121ºC110kPa7 *
134ºC/SOLID1 *4min *134ºC210kPa3 *
134ºC/POROUS3 *4min *134ºC210kPa7 *
B-D TEST34min134ºC210kPa7
VACUUM TEST----80kPa-
PRIONEN319min135ºC210kPa10

* Data marked can be adjusted based on requirements.

Product Gallery

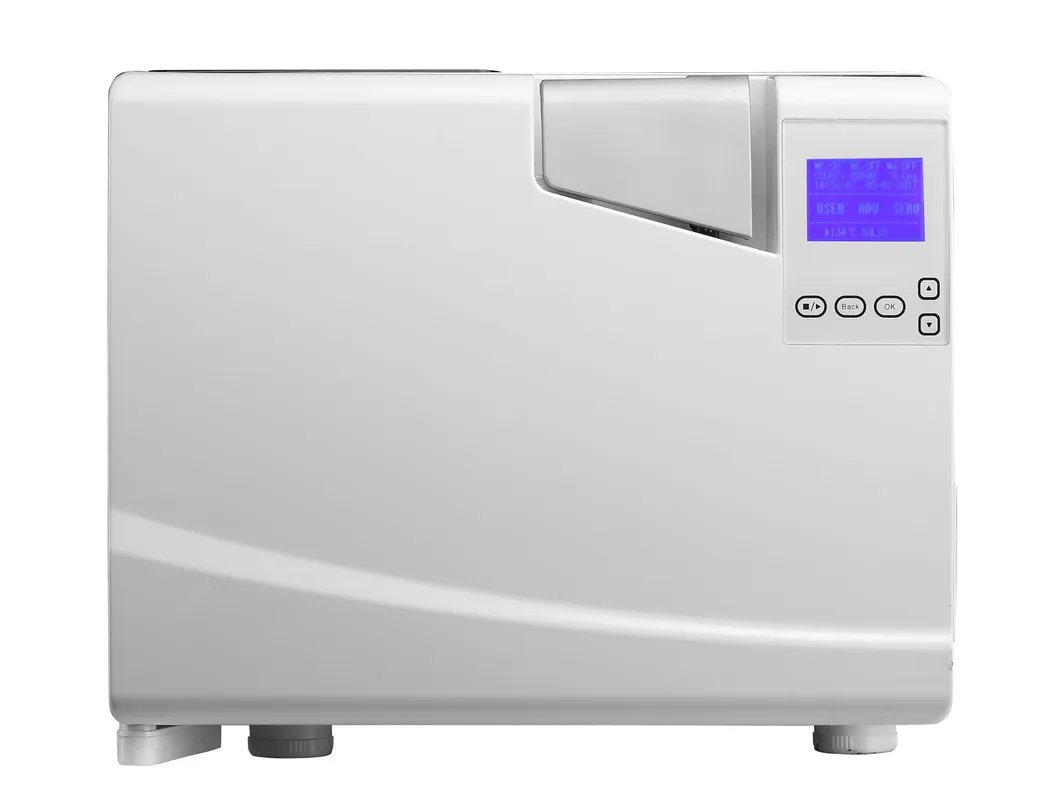

Autoclave Detail 1

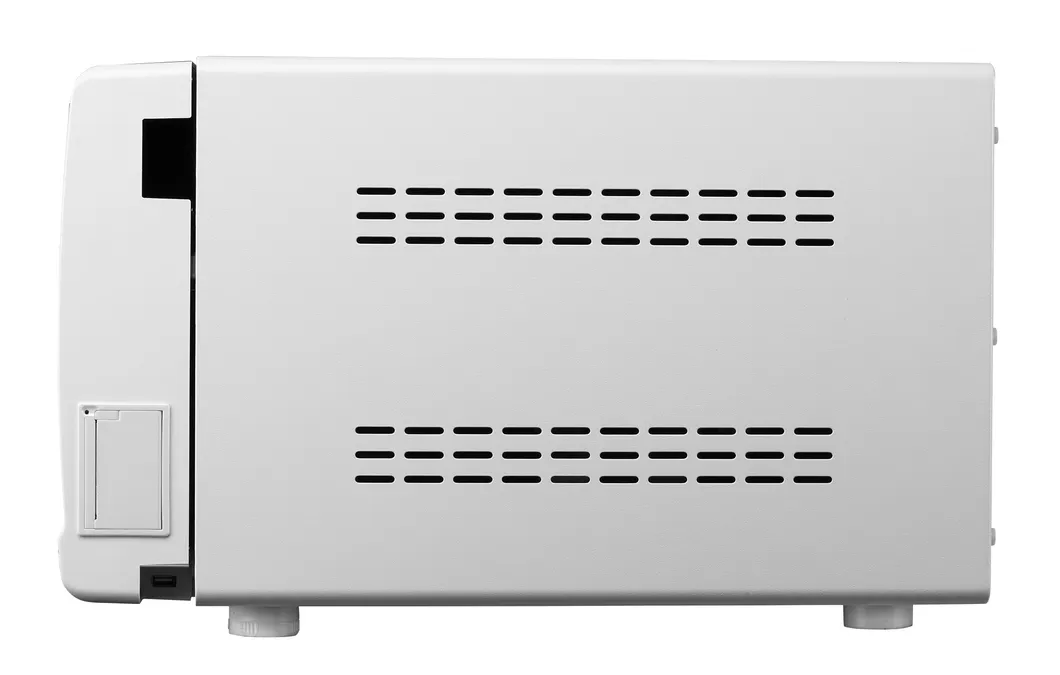

Autoclave Detail 2
Autoclave Production
Autoclave Usage
Certification Standards

Frequently Asked Questions

Q1: How fast is the sterilization cycle for this autoclave? A: The Class B sterilization cycle, including the drying phase, can be completed in as little as 20 minutes for top performance.
Q2: Does the device have built-in data recording? A: Yes, it features a built-in printer for sterilization information recording and printing to ensure full compliance with medical protocols.
Q3: Is the water tank system easy to maintain? A: Absolutely. It features an open-top fresh water tank for easy filling and cleaning, and an independent hidden waste water tank to prevent cross-infection.
Q4: What safety mechanisms are in place during operation? A: The autoclave is equipped with both electronic and mechanical locker systems, along with short circuit safety protection and an ultra-high temperature alarm.
Q5: Can this unit fit in small clinics? A: Yes, the compact design is specifically engineered for small disinfection rooms, making it ideal for dental clinics and private practices.
Q6: What is the chamber material? A: The sterilization chamber is made of high-quality Stainless Steel 304 for durability and hygiene.
