Ce Standards Eo Sterilizer Chamber Sterilization
Ce Standards Eo Sterilizer Chamber Sterilization
Ce Standards Eo Sterilizer Chamber Sterilization
Ce Standards Eo Sterilizer Chamber Sterilization
Ce Standards Eo Sterilizer Chamber Sterilization
1 / 5
Ce Standards Eo Sterilizer Chamber Sterilization
Ce Standards Eo Sterilizer Chamber Sterilization
Ce Standards Eo Sterilizer Chamber Sterilization
Ce Standards Eo Sterilizer Chamber Sterilization
Ce Standards Eo Sterilizer Chamber Sterilization

Ce Standards Eo Sterilizer Chamber Sterilization

Theory: Pneumatic
Type: Gas Sterilization Equipments
Certification: CE, ISO13485
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
FST-SIZE
Electric Tension
220~380
LCD Display
With LCD Display
Temperature Alarm
Ultra High Alarm
Data Recording
Recording and Printing
Material
Stainless Steel
Door Type
Pneumatic Door
Control System
Siemens PLC
Platform
Wincc 7.X Development
HS Code
8419200000
★

Overview

  • Overall facilities including EO sterilization chamber, preconditioning, degassing, and waste gas treatment.
  • Fully meets requirements of ISO9001:2008 and ENISO134585:2003/AC2009.
  • Advanced hot air heating system with utility model patent certificate.
  • Leading provider of ethylene oxide sterilization solutions.
  • Extensive export experience to Spain, South Africa, Ecuador, Vietnam, Argentina, and more.
📷

Products Photos

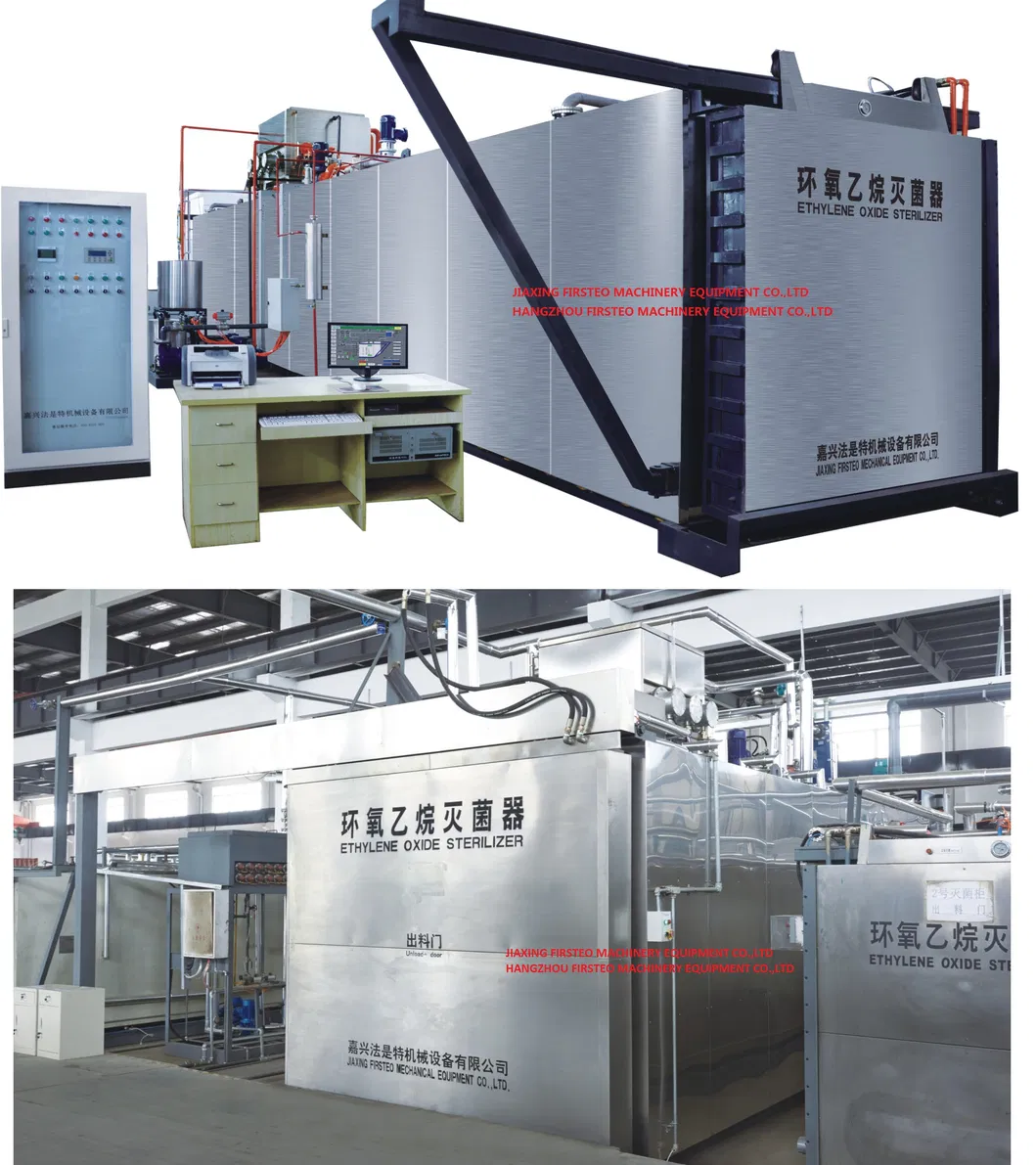

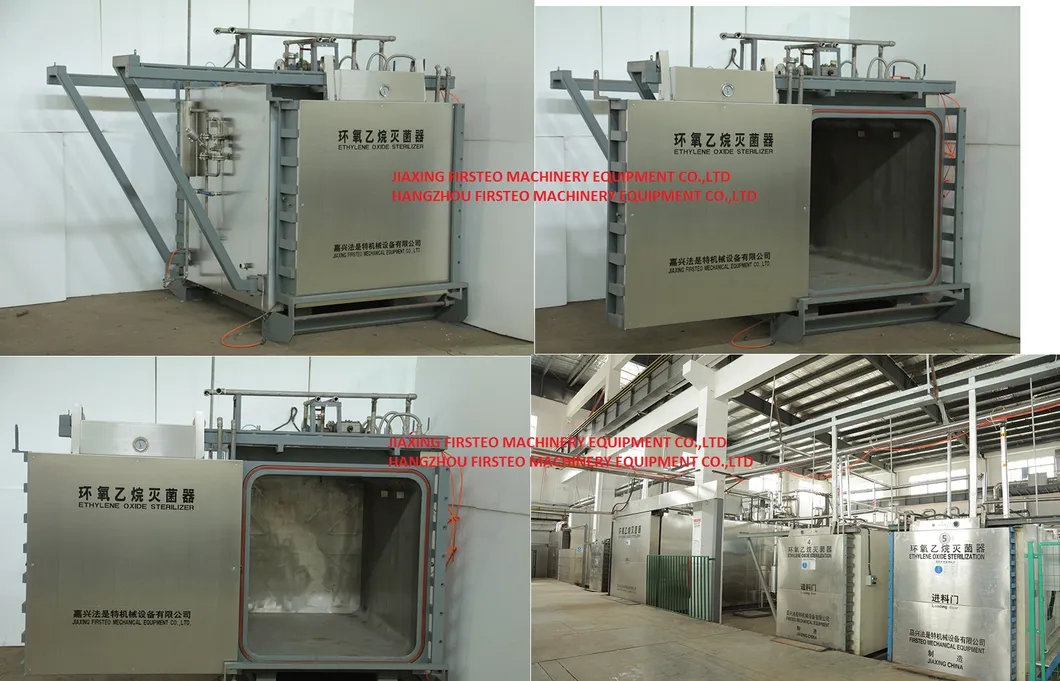

EO Sterilizer Chamber
Sterilization Equipment
⚙

E.O. Gas Sterilization Process

  1. Loading: Put goods in the sterilizer and lock the pneumatic door securely.
  2. Temperature Adjusting: Adjust to the necessary 50ºC (approx. 1-2 hours).
  3. Pre-Vacuum: Extract air from the chamber (6-30 minutes).
  4. Pressure Holding Test: Verify tightness to ensure no gas leakage.
  5. Pre-humidification: Adjust humidity to 55%RH (1-1.5 hours).
  6. EO Injection: Inject Ethylene Oxide gas into the chamber (20-30 minutes).
  7. Sterilizing: Maintain constant conditions for 4 - 8 hours.
  8. Gas Clearing: Clear residue gas using vacuum and air blowing cycles (approx. 1 hour).
  9. Unloading: Unlock the door and pull the cart outside.
Efficiency: Our sterilizer chamber can process two batches of cargo within 24 hours.
➔

System Stages

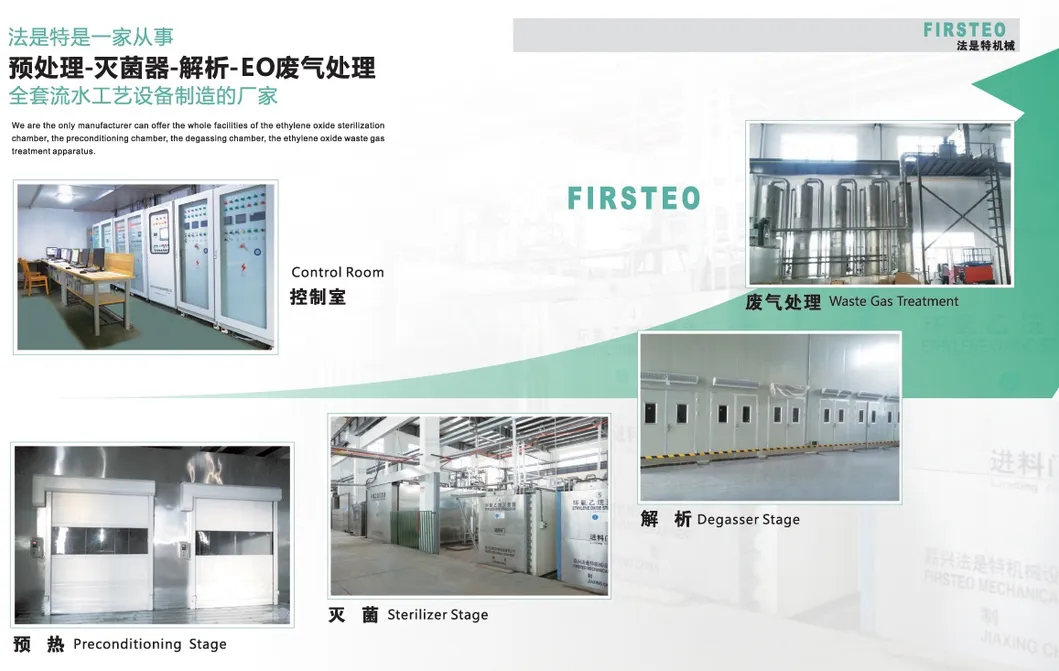

Process Diagram
📋

Technical Specifications

Technical Info. Specifications
Machine TypeEthylene Oxide sterilizers / Sterilization chambers
Chamber Capacity1 to 100 m3
Chamber TypeRectangular type, 1 to 13 pallets (80x120cm)
Doors TypeDouble doors with pneumatic sliding systems
Chamber MaterialStainless steel 304 or 316
Heating SystemDouble jacket with hot water circulation
VaporizerEthylene oxide vaporizer included
SoftwareAutomatic/Manual control, data storage, graphic recorder
PLCSIEMENS or SCHNEIDER Programmable Controller
Nitrogen GeneratorOptional Nitrogen generator system

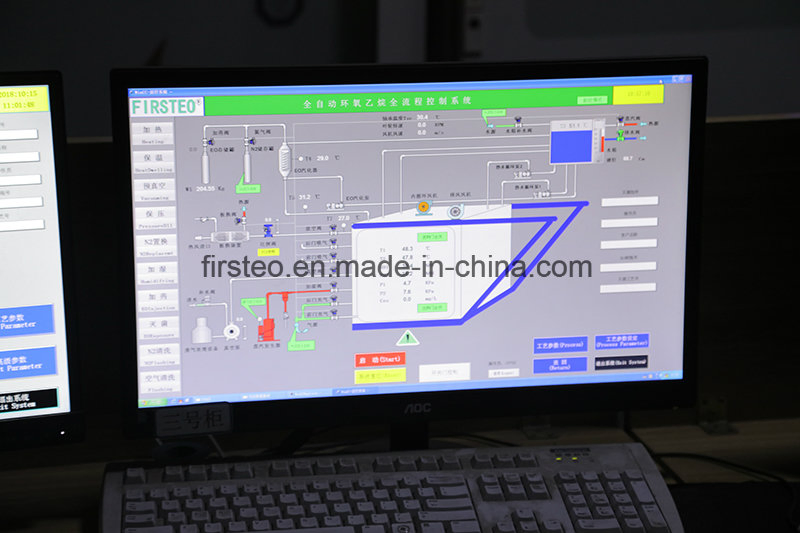

Software Interface & Reports

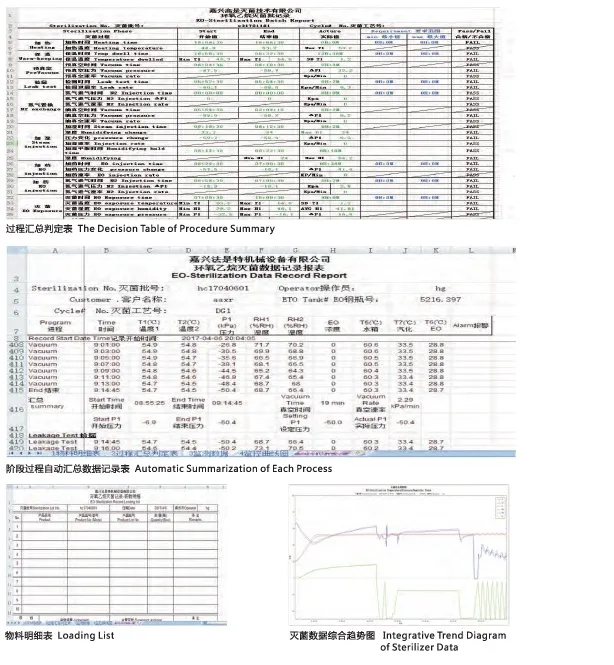

Software Report

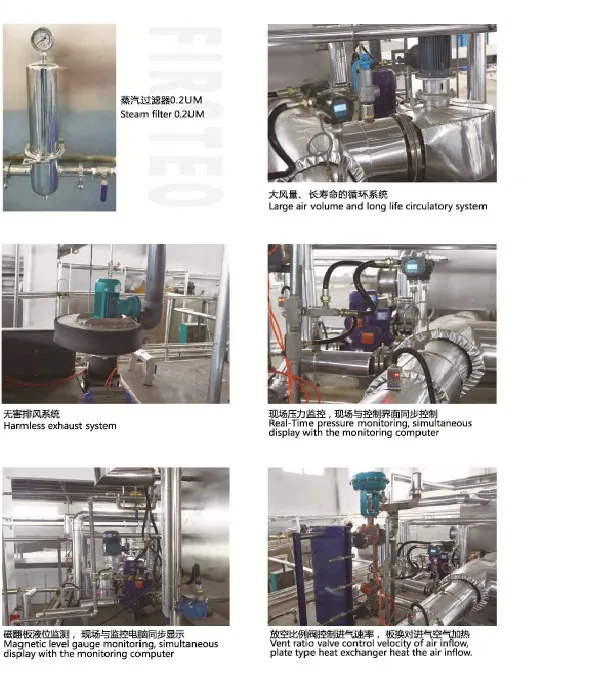

Data Details
Container Loading

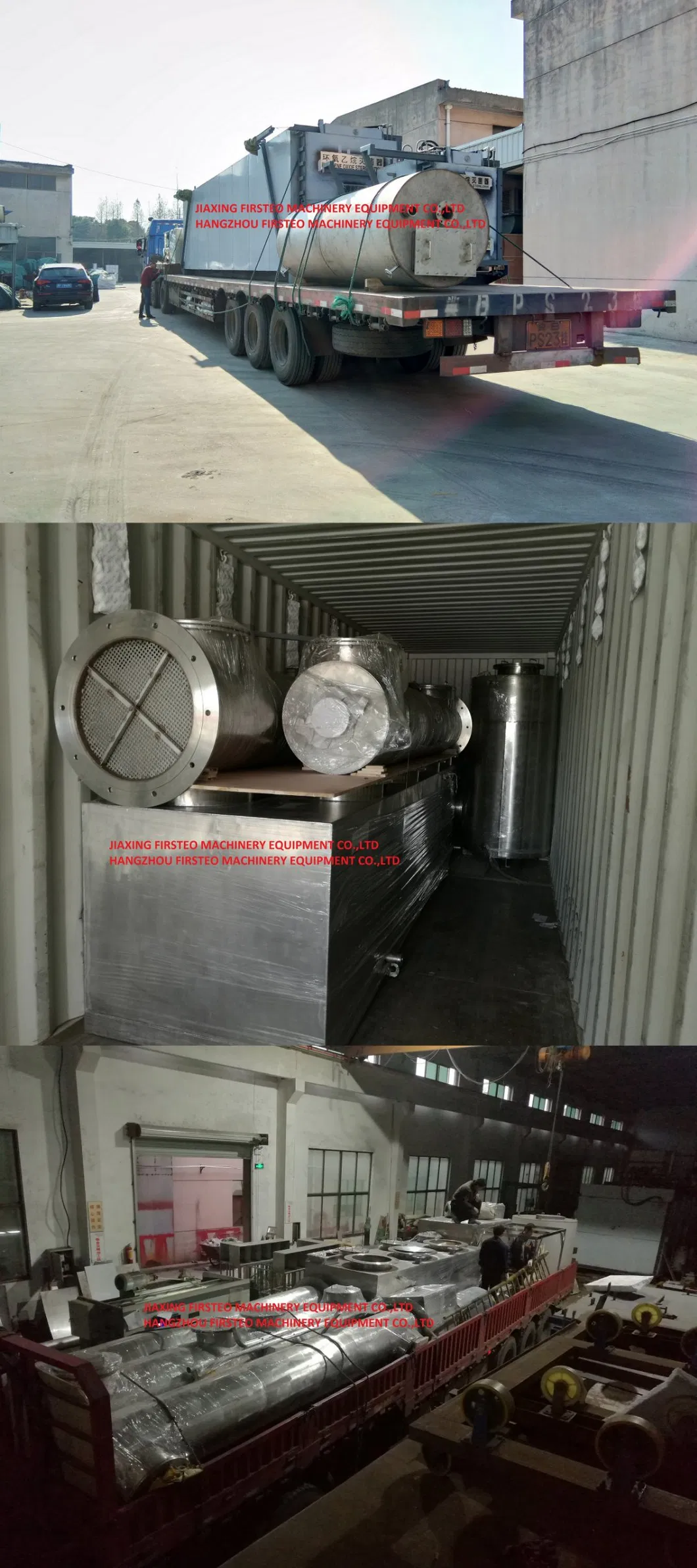

Loading Process
🎧

Service Support

Pre-Sales Service

  • Drafting technical agreements
  • Professional technical consulting
  • Equipment manufacturing customization

After-Sales Service

  • Installation and operation training
  • Overseas engineering support
  • Maintenance and parts supply
?

Frequently Asked Questions

What materials are used for the sterilization chamber?
The chamber is constructed from high-grade Stainless Steel (304 or 316) to ensure durability and resistance to the sterilization environment.
What is the production capacity of the equipment?
The system is highly efficient and capable of processing two full batches of cargo within a 24-hour period.
What control systems are integrated into the sterilizer?
We use industrial control computers with Siemens or Schneider PLC systems, operating on Windows 7 and Siemens WinCC 7.X platforms.
Does the system provide sterilization records?
Yes, the software includes automatic data storage and graphic recorders for temperature, humidity, pressure, and time, with printing capabilities.
What safety features are included?
The equipment includes ultra-high temperature alarms, air pressure holding tests to check for gas leaks, and secure pneumatic door locking systems.
Can the chamber size be customized?
Yes, the chamber capacity ranges from 1m3 to 100m3, accommodating between 1 and 13 pallets depending on the configuration.
