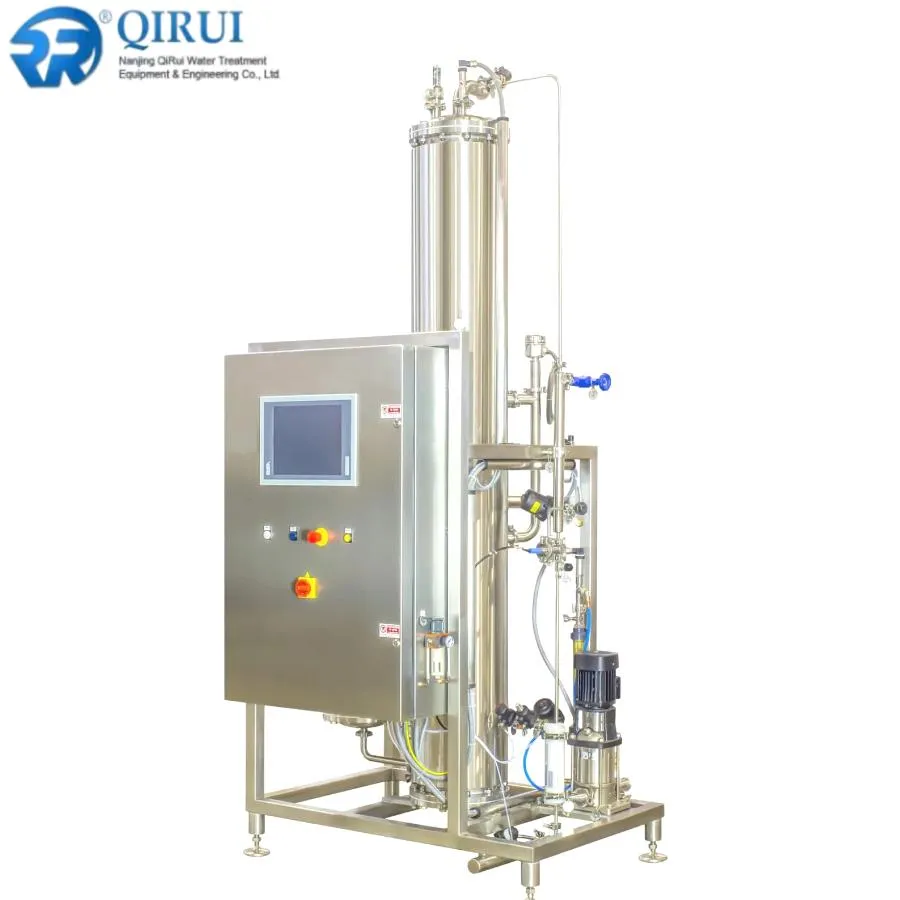

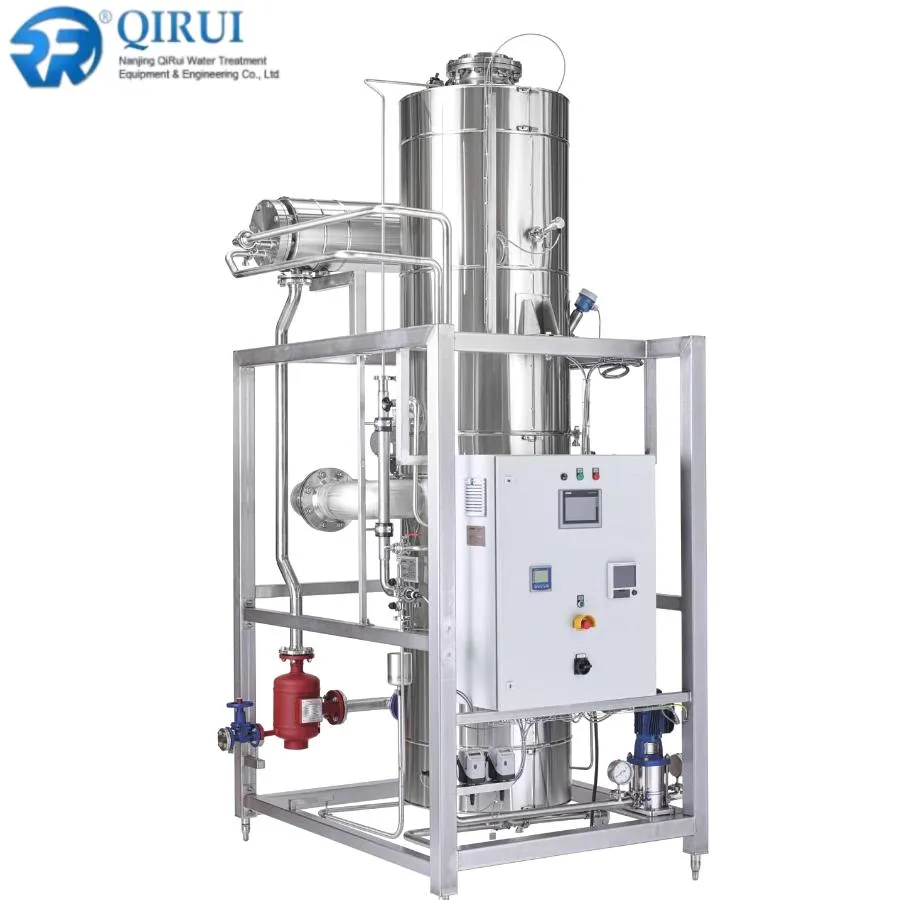

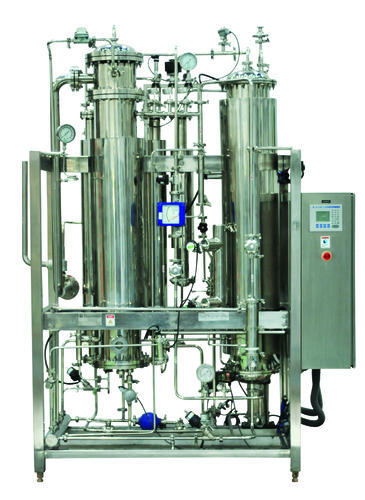

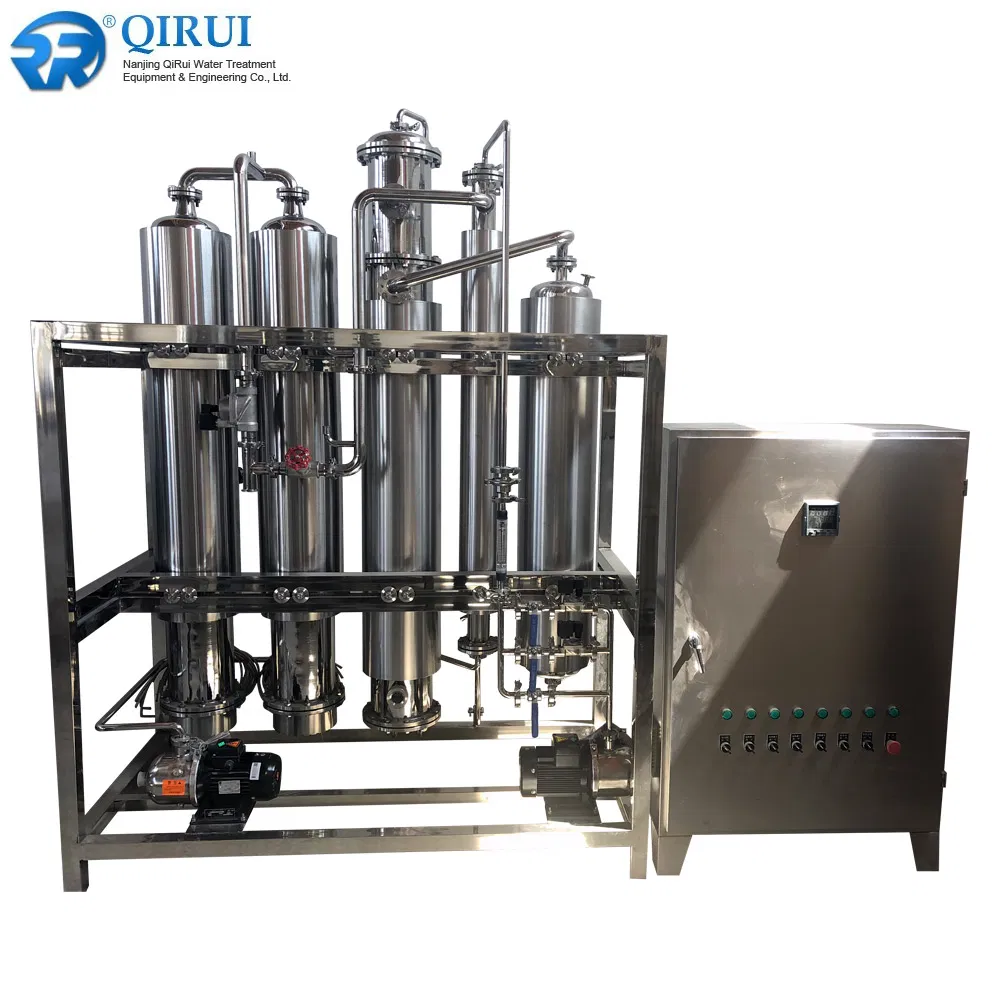

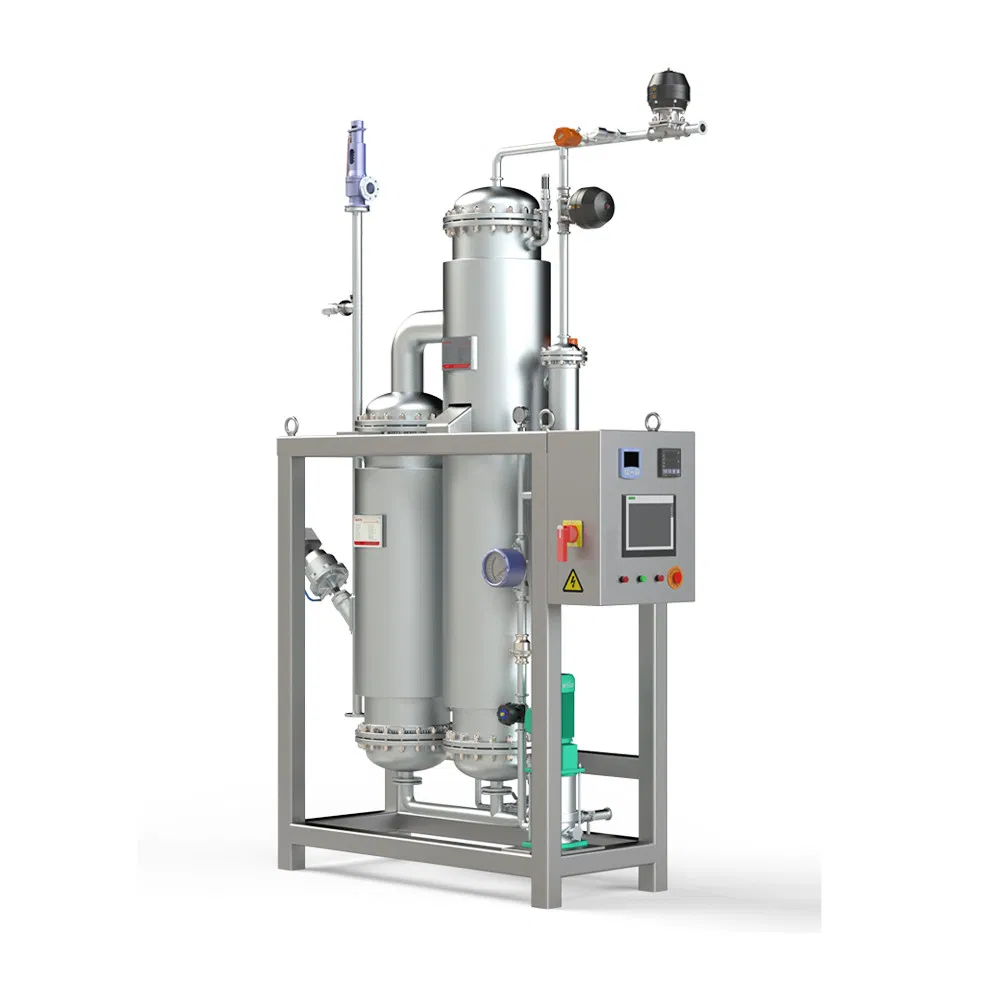

LCZ Series Pure Steam Generator

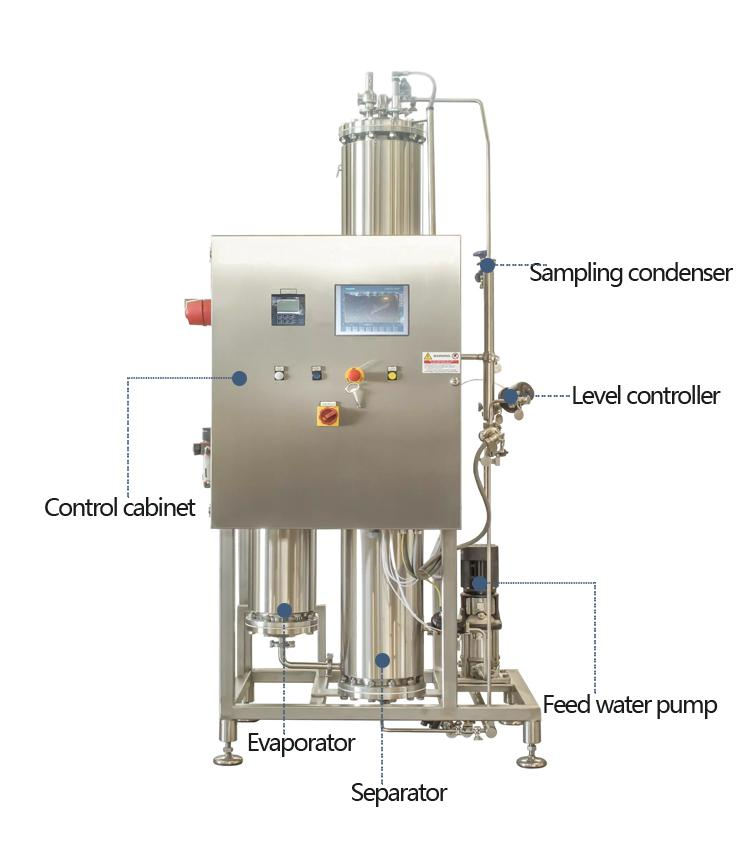

Purified water generates secondary steam heated by the boiler steam in the generator. During this process, toxins and bacteria are effectively removed, resulting in high-quality pure steam.
This equipment is widely applicable for sterilizing and disinfecting pipes and storage tanks in pharmaceutical, food, and beverage industries. The technical requirements meet the JB20031-2004 pure steam generator pharmaceutical machinery industry standards. The resulting condensed water meets all quality standards for water for injection as per the Chinese Pharmacopoeia 2020.
| Model |
Industrial Steam Pressure (Mpa) |
Pure Steam Output (kg/h) |
Industrial Steam Consumption (kg/h) |
Purified Water Consumption (L/h) |
Pure Steam Pressure (Mpa) |
Dimension L*W*H (mm) |
| LCZ-100 | 0.4 | 100 | 130 | 125 | 0.3 | 700* 900* 2500 |
| LCZ-200 | 0.4 | 200 | 260 | 250 | 0.3 | 700* 1000* 2700 |
| LCZ-300 | 0.4 | 300 | 390 | 375 | 0.3 | 800* 1100* 2800 |
| LCZ-400 | 0.4 | 400 | 520 | 500 | 0.3 | 800* 1200* 3000 |
| LCZ-500 | 0.4 | 500 | 650 | 625 | 0.3 | 800* 1300* 3100 |
| LCZ-600 | 0.4 | 600 | 780 | 750 | 0.3 | 900*1300*3100 |
| LCZ-800 | 0.4 | 800 | 1040 | 1000 | 0.3 | 1000*1300*3200 |
| LCZ-1000 | 0.4 | 1000 | 1300 | 1250 | 0.3 | 1200*1300*3200 |
| LCZ-2000 | 0.4 | 2000 | 2600 | 2500 | 0.3 | 1400*1300*3200 |
Are you a professional manufacturer?
Yes, we are a factory with more than 22 years of manufacturing experience, founded in 2004. We specialize in high-end pharmaceutical and water treatment machinery.
What is the typical delivery time for orders?
The standard delivery time usually ranges from 30 to 45 working days, depending on the specific model and customization requirements.
What after-sales support do you provide?
We provide comprehensive guide videos and online support for machine debugging. We also offer staff training for installation, operation, and maintenance. If necessary, technicians can be dispatched to your facility.
What information is needed for a customized quote?
Please provide the source water type, a raw water quality analysis report, your hourly capacity requirements (L/h), site working conditions, and the required treated-water quality standards.
What other water treatment products do you supply?
Our product range includes Multiple Effect Distilled Water Machines, RO Purified Water Systems, EDI Desalination Systems, Ultrafiltration (UF) Systems, CIP/SIP Systems, and Stainless Steel Tanks.
Does the equipment meet international pharmaceutical standards?
Yes, our pure steam generators meet JB20031-2004 industry standards, and the generated water quality complies with Chinese Pharmacopoeia 2020 requirements for injection-grade water.
