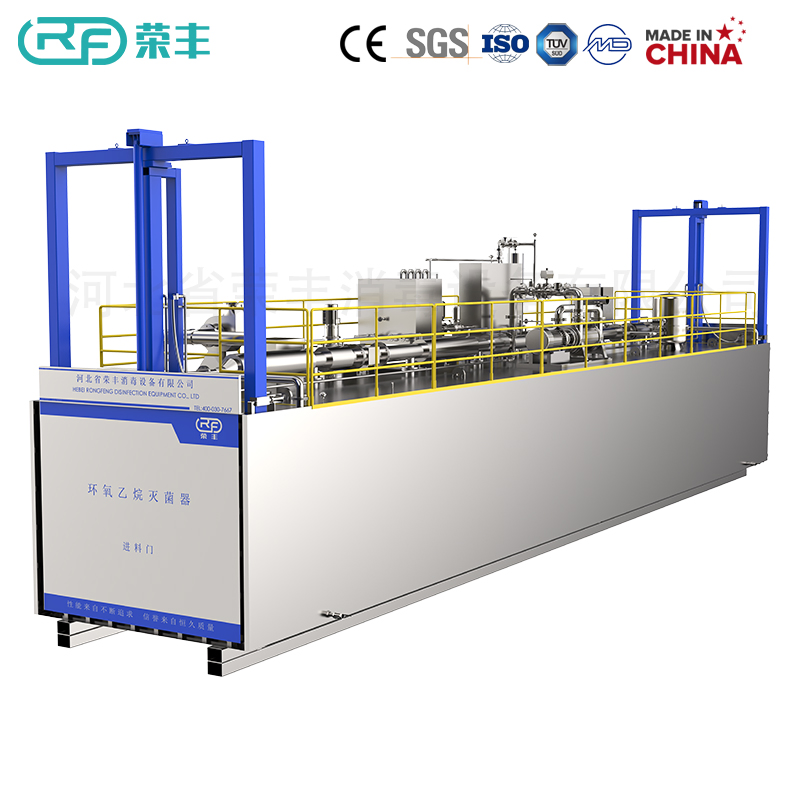

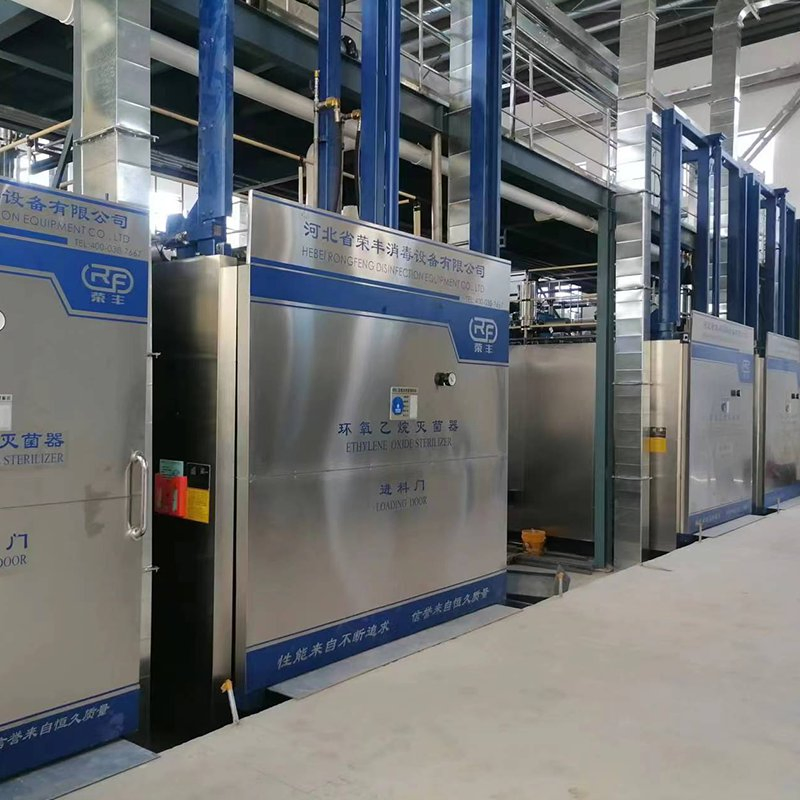

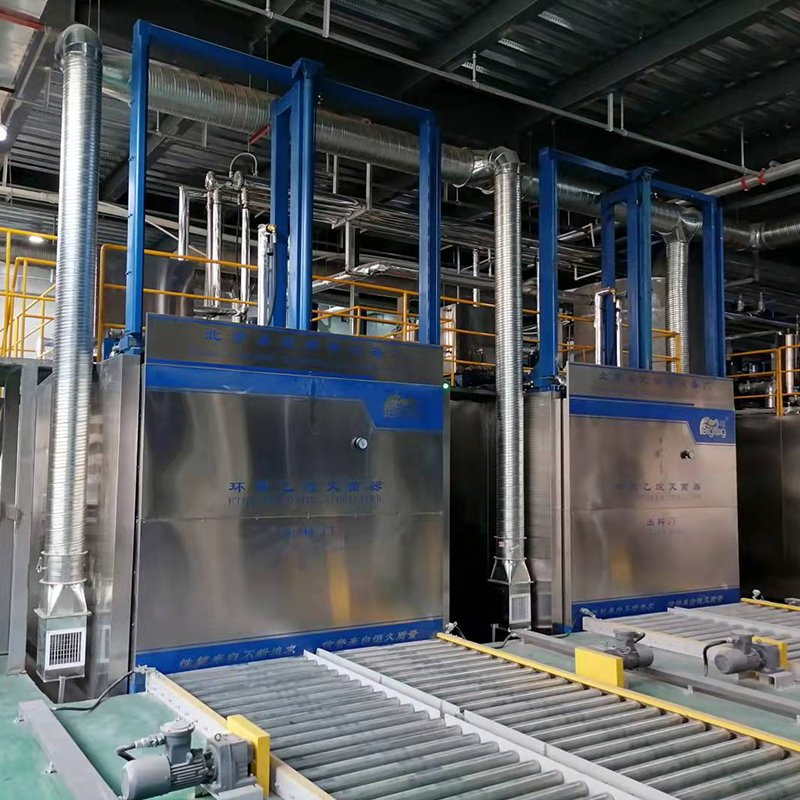

Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
1 / 5
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer
Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer

Ethylene Oxide Sterilization Cabinet / Eto Sterilizer / Ethylene Oxide Sterilizer

Customization: Available
Theory: Chemical Sterilization
Type: Gas Sterilization Equipments
Send Inquiry

Product Description

Basic Information
Model NO.
HMQ
Certification
CE, ISO13485
Electric Tension
380V
LCD Display
With LCD Display
Material
Stainless Steel
Temp. Range
(0~100)℃
Cabinet Material
SUS 304 Stainless Steel
Capacity
1-100m³
Principle of Product
Ethylene Oxide Sterilization Principle
Ethylene oxide sterilizer is a special equipment for low temperature fumigation and sterilization of the articles enclosed in the sterilization room with ethylene oxide gas under certain temperature, pressure and humidity conditions. It has a broad spectrum of sterilization, strong penetration (cloth, carton, polyethylene film can penetrate), sterilization thoroughly, no damage to the articles, easy to preserve after sterilization and other advantages.
The HMQ large ethylene oxide sterilizer is mainly composed of sterilizer cabinet, auxiliary equipment (heating and thermal circulation device, vacuum device, dosing and vaporization device, humidification device, sealing device, residual gas treatment device), monitoring and control device.
Product Features
  • The cabinet body is made of pressure vessel grade plate, designed for a 20-year service life.
  • Customized equipment according to customer needs, plant area, and output; supports customized size and door types (lifting/sliding/revolving).
  • Hexahedral hot water circulation heating mode ensures sterilization without dead corners.
  • Automatic and semi-automatic intelligent control with voice prompts and a user-friendly human-computer interface.
  • Real-time monitoring for over-temperature, over-pressure, and EO non-vaporization with automatic alarms.
  • Dosing pipeline components can be disassembled for easy cleaning; includes drainage ball valve for water jacket maintenance.
Technical Parameters
Inner Tank Volume
(1~100)m³
Temp Control Range
(0~100)℃
Pressure Control
±80Kpa
Humidity Range
(0~99)%RH
Cabinet Material
SUS 304 Stainless Steel
Power Supply
380V; 50Hz
Basic Parameters Specification
Volume (m³) Model (P/N) Cabinet Inner Size L*W*H (mm) Temp (℃) Humidity (%RH) Pressure (MPa) Power (kW) Weight (kg)
1HMQ-11400x700x100030~7040~80-0.08~0.08451000
2HMQ-21650x1000x1200452000
3HMQ-32500x1000x1200453000
6HMQ-62900x1350x1550455000
10HMQ-104400x1350x1700457000
15HMQ-155600x1350x20001009000
30HMQ-3010000x1350x200010015000
50HMQ-508500x2700x220010025000
Customer Case & Installation

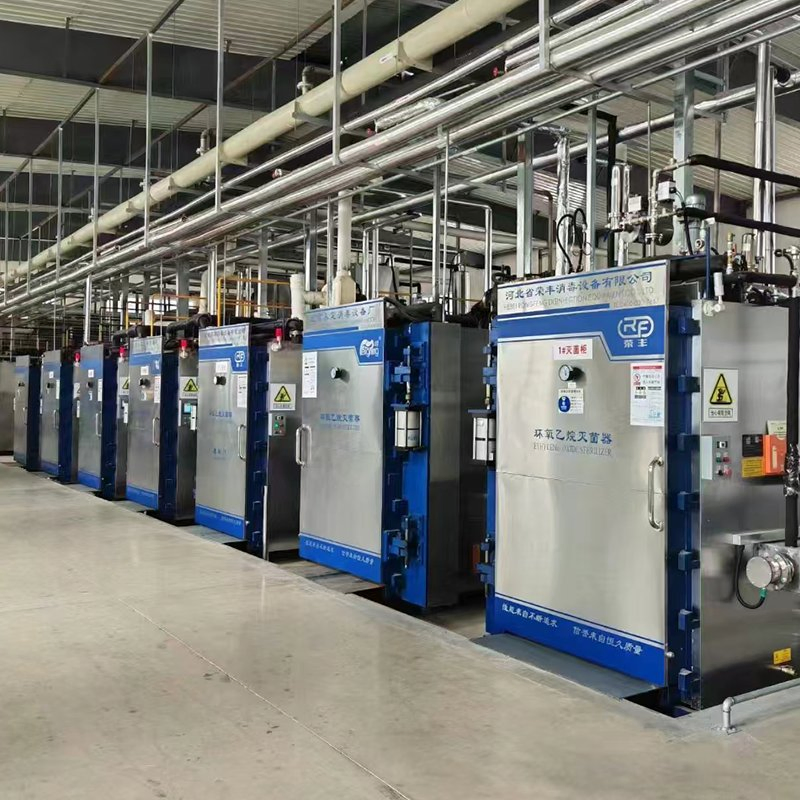

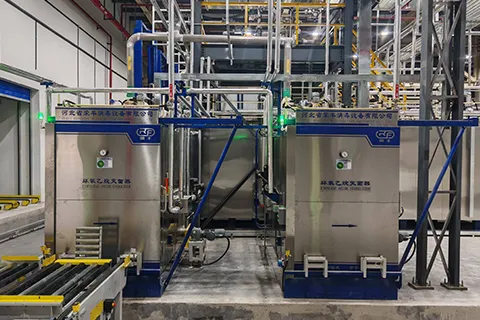

Installation Case 1

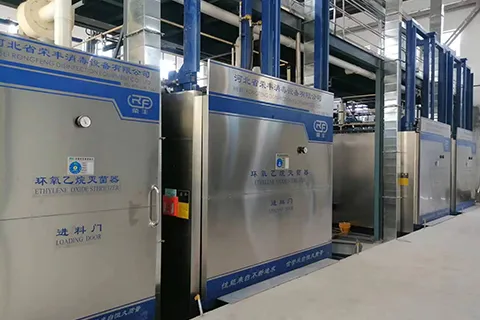

Installation Case 2

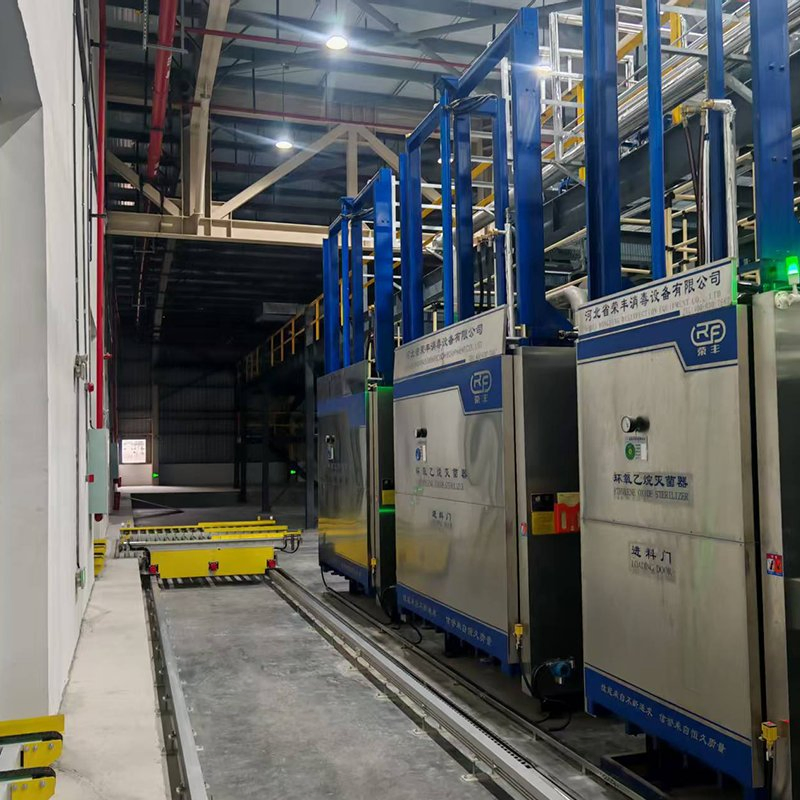

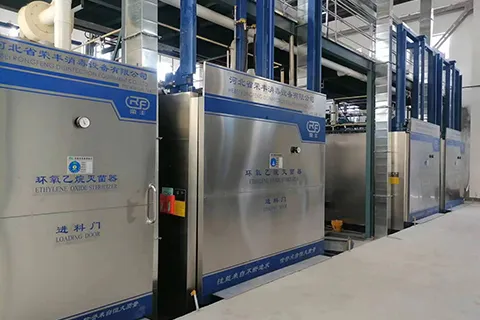

Lifting door
Lifting door

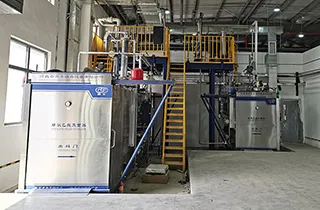

Sliding door
Sliding door

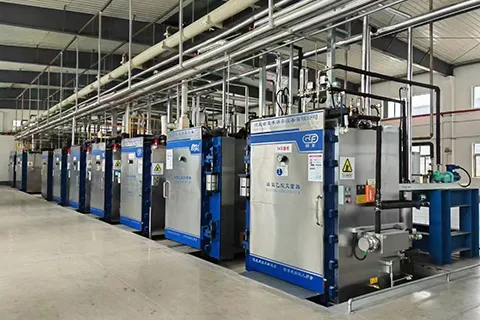

Revolving door
Revolving door

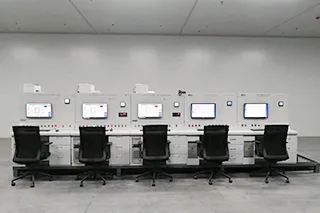

Electric control cabinet
Electric control cabinet

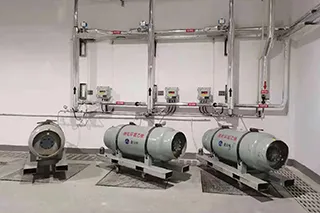

EO room
EO room

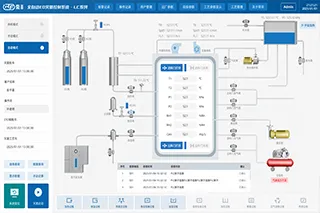

Control system
Automatic control system
Supporting Products
Preheating / Aeration Equipment

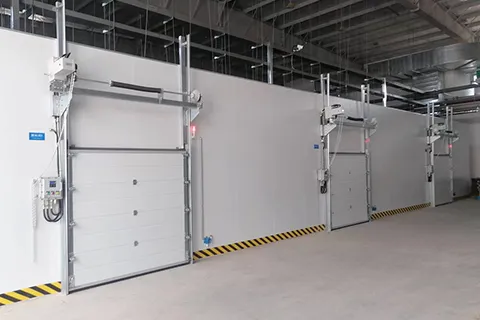

Supporting Equip 1

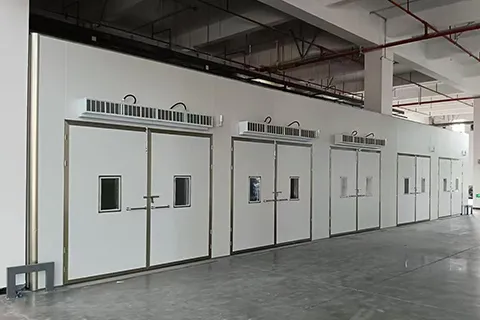

Supporting Equip 2

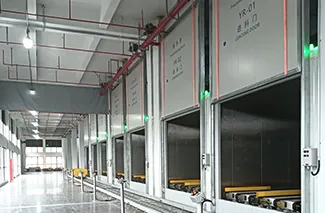

Supporting Equip 3
EO Post-processing & Conveying System

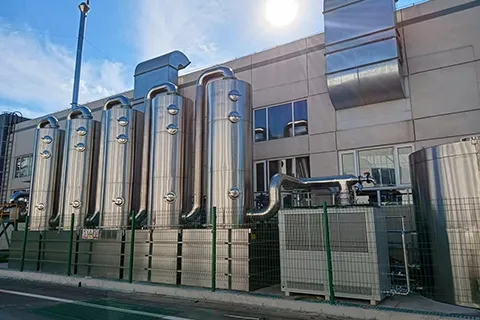

Processing 1

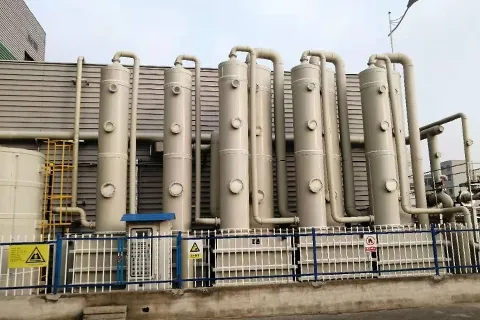

Processing 2

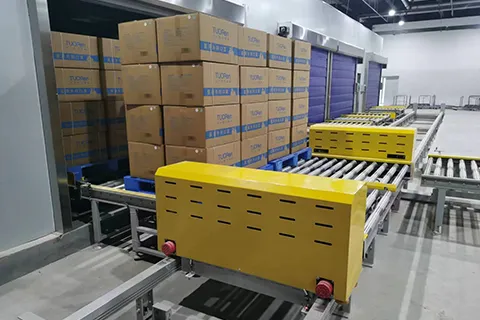

Conveying 1
Manufacturing Facility
Factory view 1
Factory view 2
Workshop
Production
Frequently Asked Questions
Are you a manufacturer or trader?
We are a direct factory covering 20,000 square meters with 15 technical engineers, 28 after-sales service members, and 85 workshop workers.
Can you provide overseas service?
Yes, after the machine arrives at your factory, we will arrange for an engineer to install the machine and train your operators.
Can we visit the factory?
Of course, we highly welcome clients to visit our factory. It would be our great honor to meet you.
How do you guarantee quality?
We ensure 100% qualified products before delivery. Clients can inspect the product at our factory. We provide a 1-year warranty and lifetime spare parts support.
What payment terms do you support?
We support T/T, L/C, and Western Union.
Do you support customized service?
Yes, we can design and manufacture equipment according to your specific requests and plant requirements.
