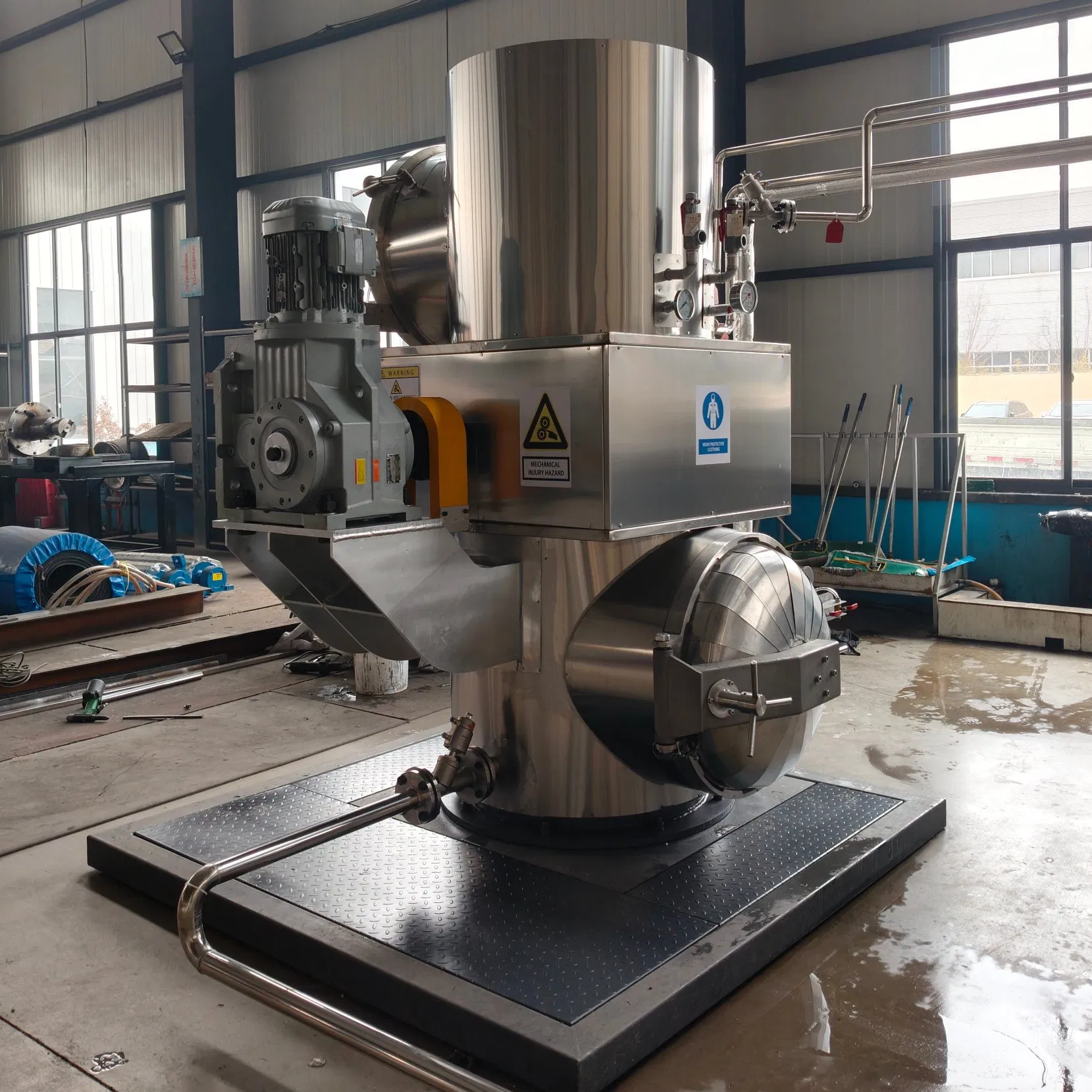

| Model NO. | TR-VMT-420L | Condition | New |
|---|---|---|---|
| Certification | ISO, CE | Automation | Automatic |
| Screw | Twin-Screw | Processing Capacity | 60kg/H |
| Single Processing Time | 30min | Batch Capacity | 25-30kg |
| Volume Reduction Rate | 85% | Volume | 420L |
| Material | Stainless Steel | Working Pressure | 0.3MPa |
| Design Temperature | 152℃ | Power | 7.5kw*1 |

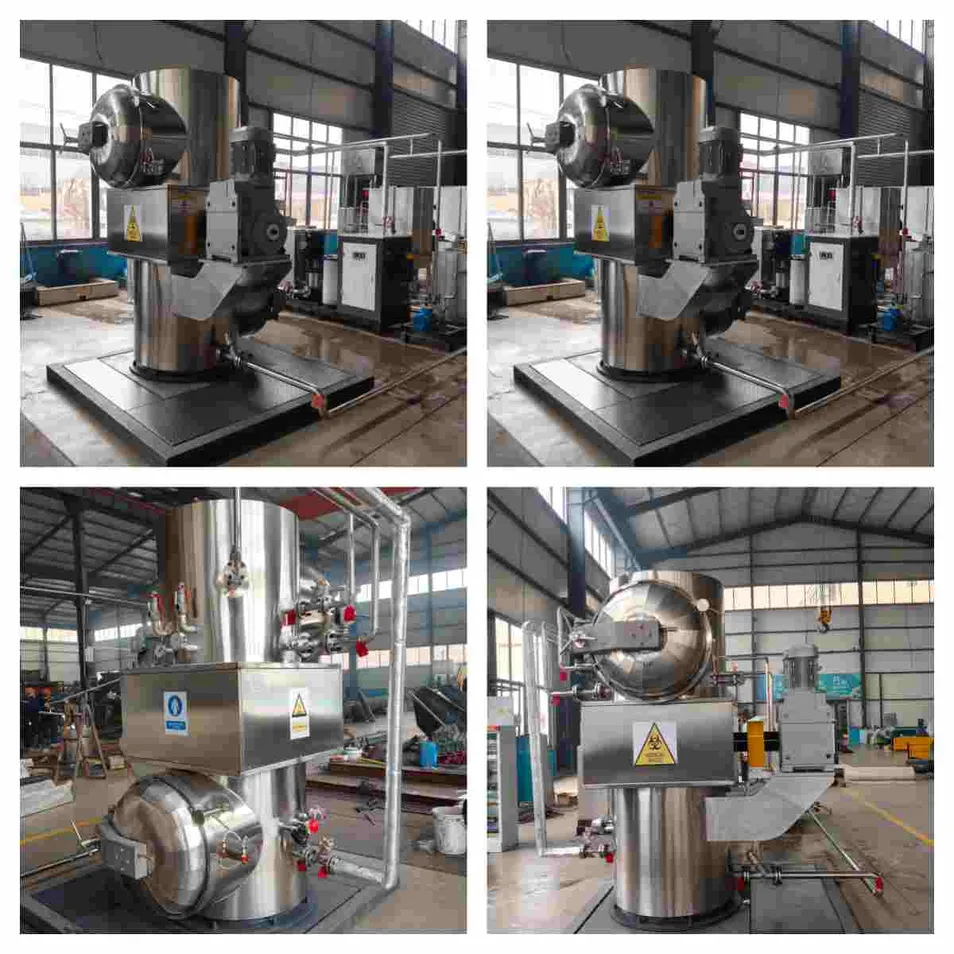

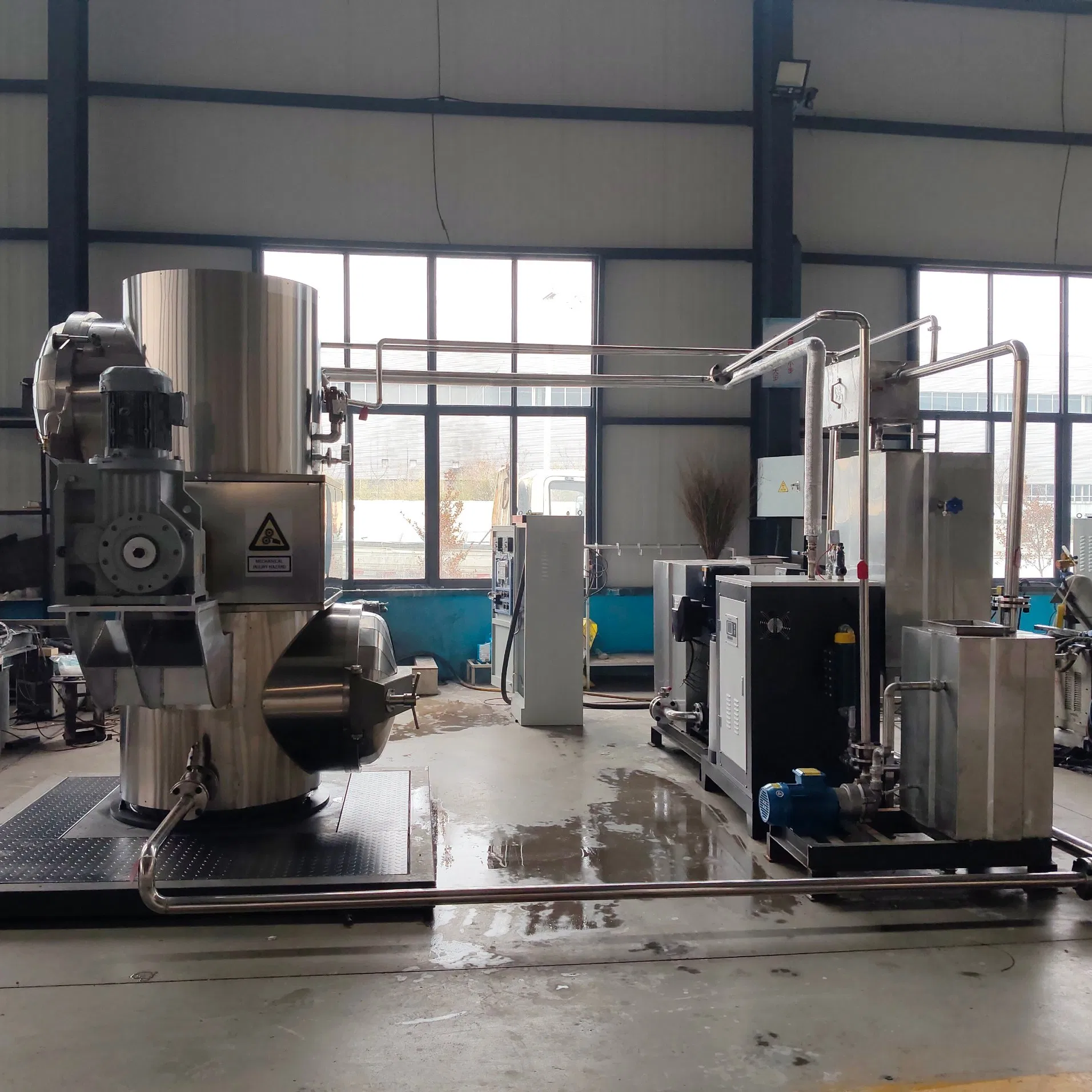

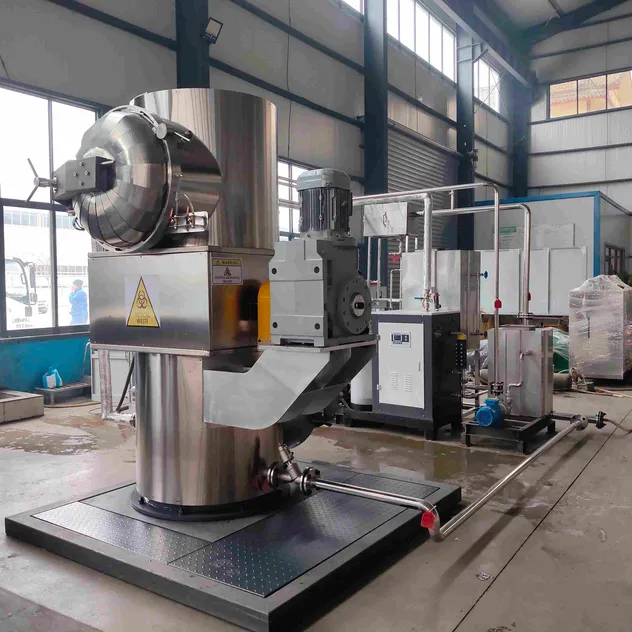

The collected medical waste is manually fed into a sterilizer. Inside, a shredding system breaks the waste into particles. A pre-vacuum method purges air, followed by high-temperature, high-pressure saturated steam. After treatment, a vacuum process removes remaining air. Pathogens are effectively killed, allowing the waste to be treated as ordinary household waste with significantly reduced volume and weight.

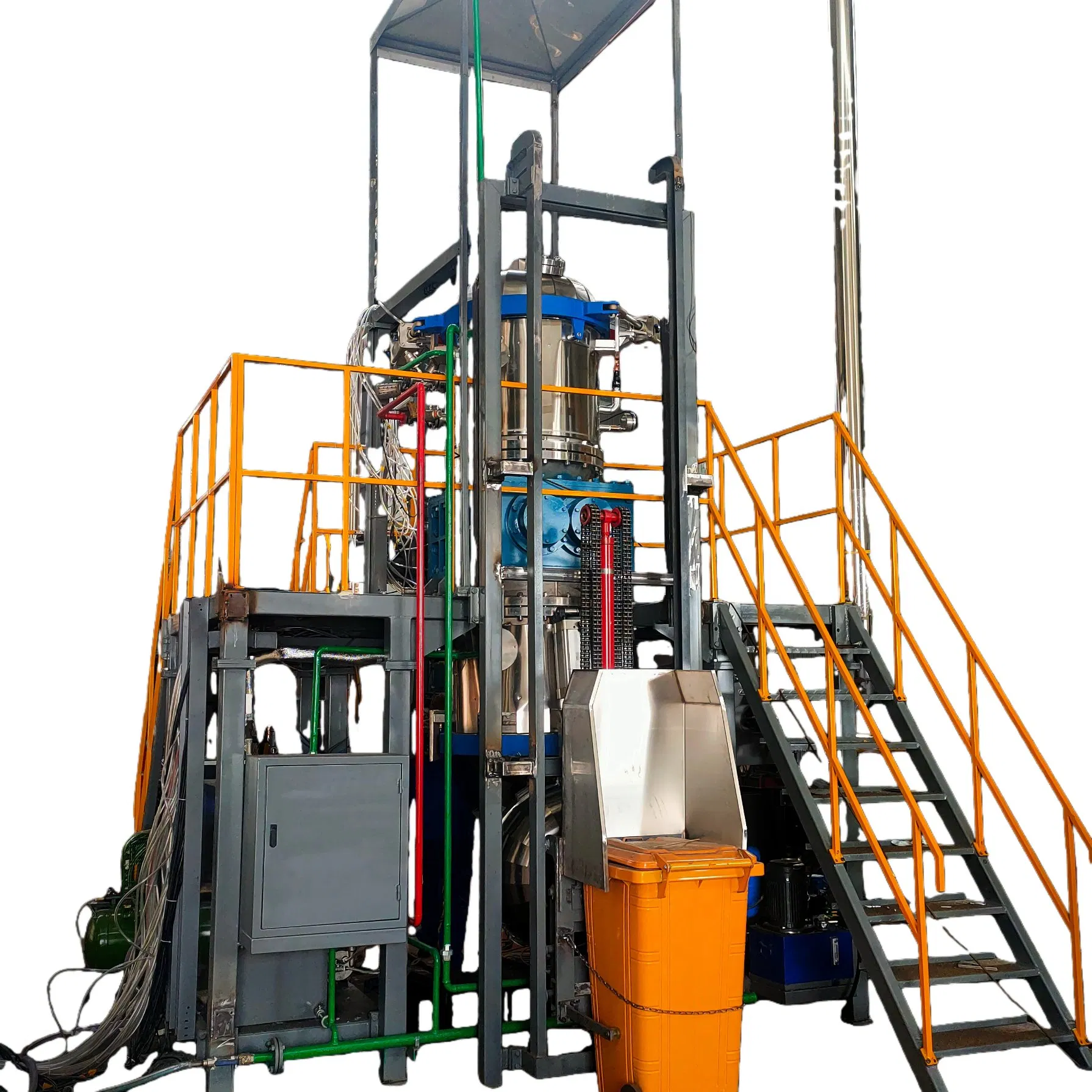

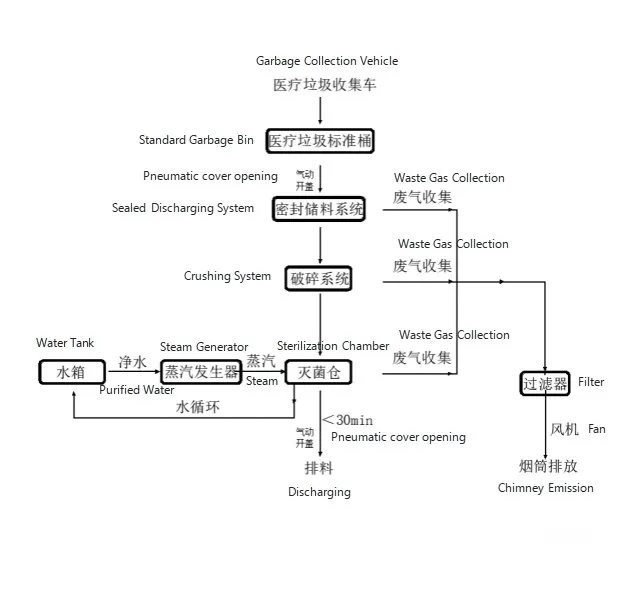

Schematic Diagram of Working Process and Assembly Sequence of System Units.

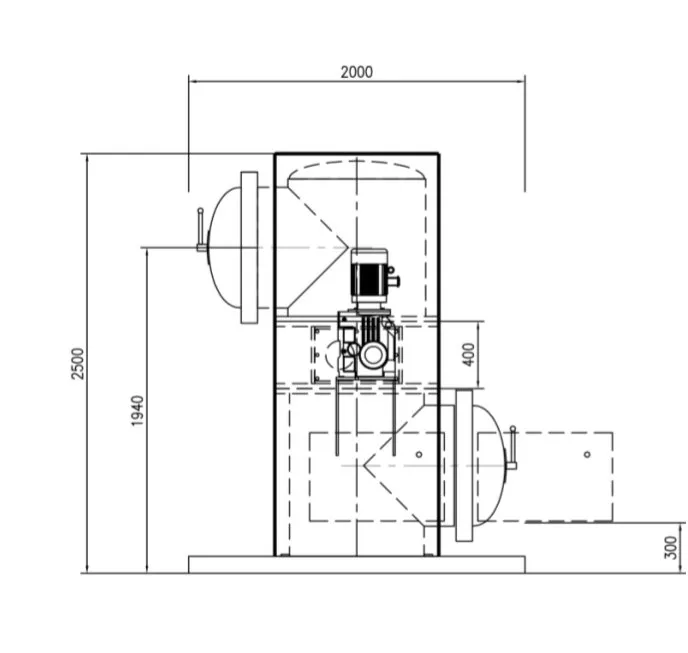

The sealing connection with the shredding system is composed of a stainless steel flange and a high-temperature resistant gasket. The quick-opening discharge door uses an inflatable gasket sealing method. During installation, the sterilization chamber is fastened to a steel frame with high-strength bolts.
| System Unit | Project | Technical Parameters |
|---|---|---|
| Processor | Processing Capacity | 60kg/h |
| Sterilization Method | High-temperature steam | |
| Final Effect | Inactivation level: 8Log10 | |
| Volume Reduction | 85% | |
| Vertical Vessel | Volume | 420L |
| Working Pressure | 0.3MPa | |
| Working Temp | 134℃ | |
| Crushing System | Power | 7.5kw*1 |
| Blade Material | Imported Material |

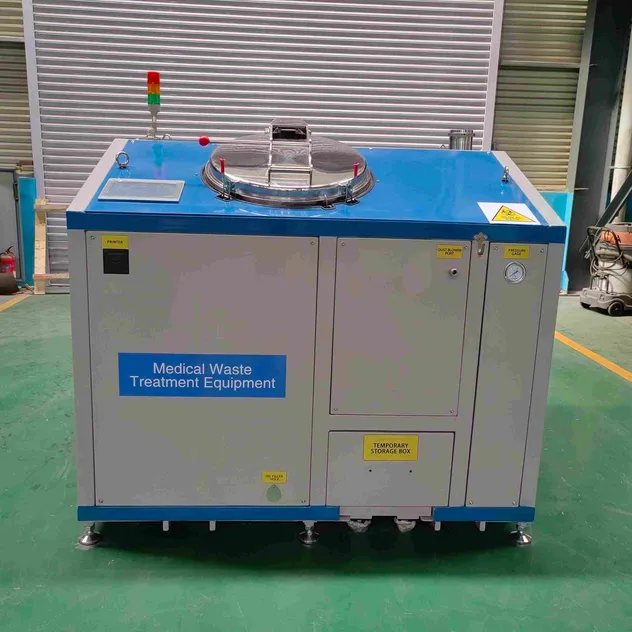

Microwave Disinfection

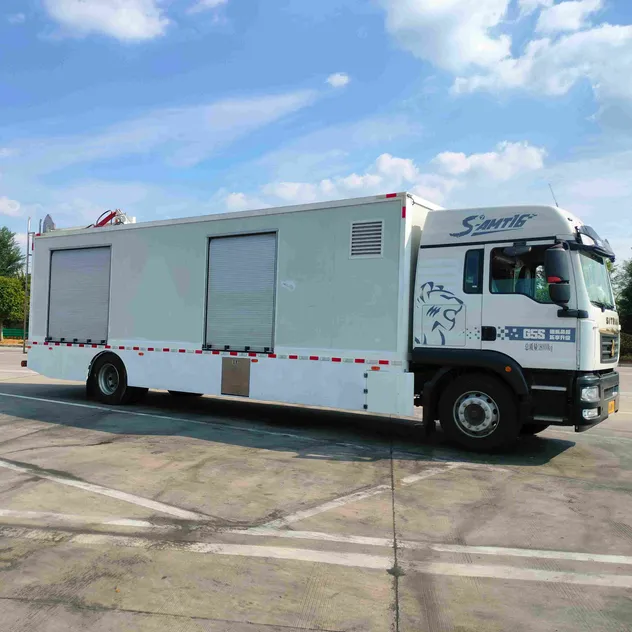

Mobile Sterilization
Steam Treatment
Chemical Treatment

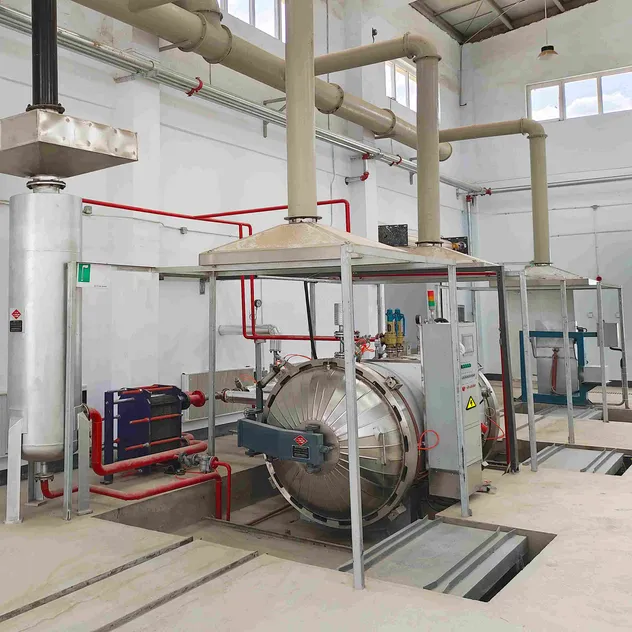

Horizontal Steam Equipment

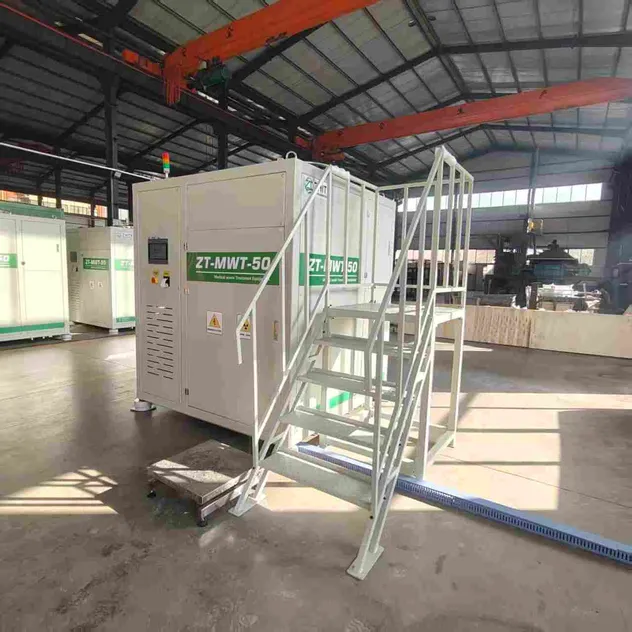

Small Microwave Treatment
